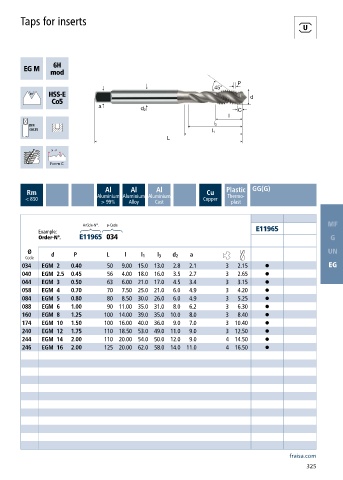

Taps for inserts

DIN
40435

Al
Al
Al
Rm Aluminium Aluminium Aluminium Cu Plastic GG(G)
< 850 Copper Thermo-
> 99% Alloy Cast plast
Article-N°. ø-Code MF
Example: E11965
Order-N°. E11965 034 G
Ø d a UN
Code P L l l 1 l 3 d 2
034 EGM 2 0.40 50 9.00 15.0 13.0 2.8 2.1 3 2.15 • EG
040 EGM 2.5 0.45 56 4.00 18.0 16.0 3.5 2.7 3 2.65 •
044 EGM 3 0.50 63 6.00 21.0 17.0 4.5 3.4 3 3.15 •
058 EGM 4 0.70 70 7.50 25.0 21.0 6.0 4.9 3 4.20 •
084 EGM 5 0.80 80 8.50 30.0 26.0 6.0 4.9 3 5.25 •
088 EGM 6 1.00 90 11.00 35.0 31.0 8.0 6.2 3 6.30 •
160 EGM 8 1.25 100 14.00 39.0 35.0 10.0 8.0 3 8.40 •
174 EGM 10 1.50 100 16.00 40.0 36.0 9.0 7.0 3 10.40 •
240 EGM 12 1.75 110 18.50 53.0 49.0 11.0 9.0 3 12.50 •
244 EGM 14 2.00 110 20.00 54.0 50.0 12.0 9.0 4 14.50 •
246 EGM 16 2.00 125 20.00 62.0 58.0 14.0 11.0 4 16.50 •
