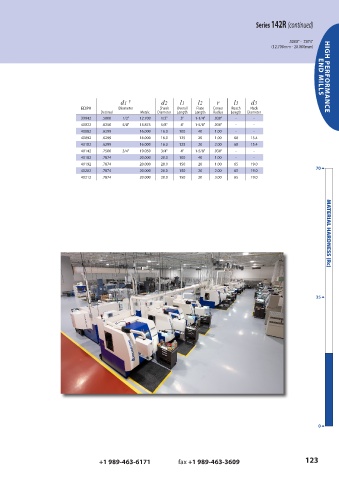

Series 142R (continued)

.5000" - .7874"
(12.700mm - 20.000mm)

d1 † d2 l1 l2 r l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Corner Reach Neck
Decimal Metric Diameter Length Length Radius Length Diameter
39942 .5000 1/2" 12.700 1/2" 3" 1-1/4" .030" - -
40022 .6250 5/8" 15.875 5/8" 4" 1-5/8" .030" - -
40082 .6299 16.000 16.0 100 40 1.00 - -
40092 .6299 16.000 16.0 125 20 1.00 60 15.4
40102 .6299 16.000 16.0 125 20 2.00 60 15.4
40142 .7500 3/4" 19.050 3/4" 4" 1-5/8" .030" - -
40182 .7874 20.000 20.0 100 40 1.00 - -
40192 .7874 20.000 20.0 150 20 1.00 65 19.0
40202 .7874 20.000 20.0 150 20 2.00 65 19.0 70 6
40212 .7874 20.000 20.0 150 20 3.00 65 19.0 MATERIAL HARDNESS (Rc)

35 6

0 6
