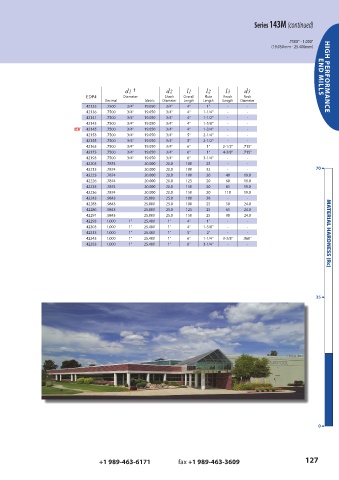

Series 143M (continued)

.7500" - 1.000"
(19.050mm - 25.400mm)

d1 † d2 l1 l2 l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Reach Neck
Decimal Metric Diameter Length Length Length Diameter
42133 .7500 3/4" 19.050 3/4" 4" 1" - -
42136 .7500 3/4" 19.050 3/4" 4" 1-1/4" - -
42141 .7500 3/4" 19.050 3/4" 4" 1-1/2" - -
42143 .7500 3/4" 19.050 3/4" 4" 1-5/8" - -
NEW 42145 .7500 3/4" 19.050 3/4" 4" 1-3/4" - -
42153 .7500 3/4" 19.050 3/4" 5" 2-1/4" - -
42155 .7500 3/4" 19.050 3/4" 5" 2-1/2" - -
42163 .7500 3/4" 19.050 3/4" 6" 1" 2-1/2" .715"
42173 .7500 3/4" 19.050 3/4" 6" 1" 4-3/8" .715"
42193 .7500 3/4" 19.050 3/4" 6" 3-1/4" - -
42203 .7874 20.000 20.0 100 25 - -
42213 .7874 20.000 20.0 100 32 - - 70 6
42223 .7874 20.000 20.0 100 20 40 19.0
42226 .7874 20.000 20.0 125 20 60 19.0
42233 .7874 20.000 20.0 150 20 85 19.0
42236 .7874 20.000 20.0 150 20 110 19.0
42243 .9843 25.000 25.0 100 38 - -
42283 .9843 25.000 25.0 100 25 50 24.0
42286 .9843 25.000 25.0 125 25 65 24.0
42291 .9843 25.000 25.0 150 25 90 24.0
42293 1.000 1" 25.400 1" 4" 1" - -
42303 1.000 1" 25.400 1" 4" 1-5/8" - -
42313 1.000 1" 25.400 1" 5" 2" - - MATERIAL HARDNESS (Rc)
42343 1.000 1" 25.400 1" 6" 1-1/4“ 3-3/8" .960"
42353 1.000 1" 25.400 1" 6" 3-1/4“ - -

35 6
