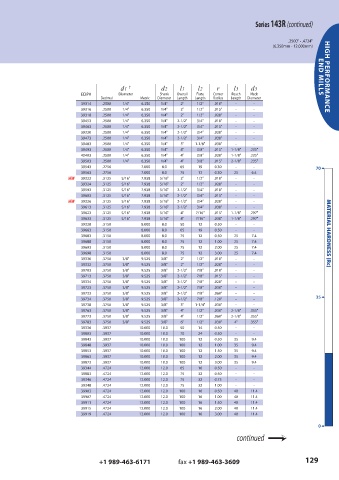

Page 129 - GARR_TOOL(CATALOG_INT)

Series 143R (continued)

.2500" - .4724"
(6.350mm - 12.000mm)

d1 † d2 l1 l2 r l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Corner Reach Neck
Decimal Metric Diameter Length Length Radius Length Diameter
39314 .2500 1/4" 6.350 1/4" 2" 1/2" .010" - -
39316 .2500 1/4" 6.350 1/4" 2" 1/2" .015" - -
39318 .2500 1/4" 6.350 1/4" 2" 1/2" .020" - -
39453 .2500 1/4" 6.350 1/4" 2-1/2" 3/4" .010" - -
39463 .2500 1/4" 6.350 1/4" 2-1/2" 3/4" .015" - -
39320 .2500 1/4" 6.350 1/4" 2-1/2" 3/4" .020" - -
39473 .2500 1/4" 6.350 1/4" 2-1/2" 3/4" .030" - -
39483 .2500 1/4" 6.350 1/4" 3" 1-1/8" .030" - -
39493 .2500 1/4" 6.350 1/4" 4" 3/8" .015" 1-1/8" .235"
40403 .2500 1/4" 6.350 1/4" 4" 3/8" .030" 1-1/8" .235"
39503 .2500 1/4" 6.350 1/4" 4" 3/8" .015" 2-1/8" .235"
39543 .2756 7.000 8.0 65 19 0.30 - - 70 6
39563 .2756 7.000 8.0 75 12 0.30 25 6.4
NEW 39322 .3125 5/16" 7.938 5/16" 2" 1/2" .010" - -
39324 .3125 5/16" 7.938 5/16" 2" 1/2" .020" - -
39593 .3125 5/16" 7.938 5/16" 2-1/2" 3/4" .010" - -
39603 .3125 5/16" 7.938 5/16" 2-1/2" 3/4" .015" - -
NEW 39326 .3125 5/16" 7.938 5/16" 2-1/2" 3/4" .020" - -
39613 .3125 5/16" 7.938 5/16" 2-1/2" 3/4" .030" - -
39623 .3125 5/16" 7.938 5/16" 4" 7/16" .015" 1-1/8" .297"
39633 .3125 5/16" 7.938 5/16" 4" 7/16" .030" 1-1/8" .297"
39328 .3150 8.000 8.0 50 12 0.50 - -
39663 .3150 8.000 8.0 65 19 0.50 - -
39683 .3150 8.000 8.0 75 12 0.50 25 7.4 MATERIAL HARDNESS (Rc)
39688 .3150 8.000 8.0 75 12 1.00 25 7.4
39693 .3150 8.000 8.0 75 12 2.00 25 7.4
39698 .3150 8.000 8.0 75 12 3.00 25 7.4
39330 .3750 3/8" 9.525 3/8" 2" 1/2" .010" - -
39332 .3750 3/8" 9.525 3/8" 2" 1/2" .020" - -
39703 .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .010" - -
39713 .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .015" - -
39334 .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .020" - -
39723 .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .030" - -
39733 .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .060" - -
39734 .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .120" - - 35 6
39738 .3750 3/8" 9.525 3/8" 3" 1-1/4" .030" - -
39763 .3750 3/8" 9.525 3/8" 4" 1/2" .030" 2-1/8" .355"
39773 .3750 3/8" 9.525 3/8" 4" 1/2" .060" 2-1/8" .355"
39783 .3750 3/8" 9.525 3/8" 6" 1/2" .030" 4" .355"
39336 .3937 10.000 10.0 50 14 0.50 - -
39803 .3937 10.000 10.0 70 24 0.50 - -
39843 .3937 10.000 10.0 100 12 0.50 35 9.4
39848 .3937 10.000 10.0 100 12 1.00 35 9.4
39853 .3937 10.000 10.0 100 12 1.50 35 9.4
39863 .3937 10.000 10.0 100 12 2.00 35 9.4
39873 .3937 10.000 10.0 100 12 3.00 35 9.4
39344 .4724 12.000 12.0 65 16 0.50 - -
39883 .4724 12.000 12.0 75 32 0.50 - -
39346 .4724 12.000 12.0 75 32 0.75 - -
39348 .4724 12.000 12.0 75 32 1.00 - -
39903 .4724 12.000 12.0 100 16 0.50 40 11.4
39907 .4724 12.000 12.0 100 16 1.00 40 11.4
39911 .4724 12.000 12.0 100 16 1.50 40 11.4
39915 .4724 12.000 12.0 100 16 2.00 40 11.4
39919 .4724 12.000 12.0 100 16 3.00 40 11.4

0 6
continued ?
