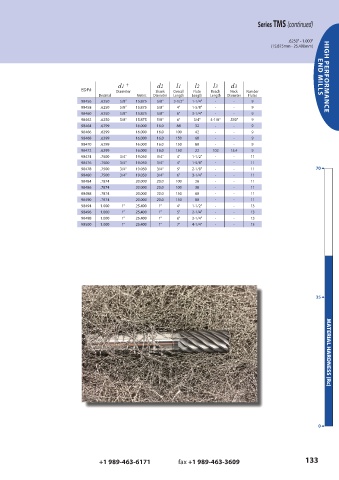

Page 133 - GARR_TOOL(CATALOG_INT)

Series TMS (continued)

.6250" - 1.000"
(15.875mm - 25.400mm)

d1 † d2 l1 l2 l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Reach Neck Number
Decimal Metric Diameter Length Length Length Diameter Flutes
98456 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" - - 9
98458 .6250 5/8" 15.875 5/8" 4" 1-5/8" - - 9
98460 .6250 5/8" 15.875 5/8" 6" 3-1/4" - - 9
98462 .6250 5/8" 15.875 5/8" 6" 3/4" 4-1/8" .590" 9
98464 .6299 16.000 16.0 88 32 - - 9
98466 .6299 16.000 16.0 100 42 - - 9
98468 .6299 16.000 16.0 150 60 - - 9
98470 .6299 16.000 16.0 150 80 - - 9
98472 .6299 16.000 16.0 150 22 102 15.4 9
98474 .7500 3/4" 19.050 3/4" 4" 1-1/2" - - 11
98476 .7500 3/4" 19.050 3/4" 4" 1-5/8" - - 11
98478 .7500 3/4" 19.050 3/4" 5" 2-1/8" - - 11 70 6
98480 .7500 3/4" 19.050 3/4" 6" 3-1/4" - - 11
98484 .7874 20.000 20.0 100 26 - - 11
98486 .7874 20.000 20.0 100 38 - - 11
98488 .7874 20.000 20.0 150 60 - - 11
98490 .7874 20.000 20.0 150 80 - - 11
98494 1.000 1" 25.400 1" 4" 1-1/2" - - 13
98496 1.000 1" 25.400 1" 5" 2-1/4" - - 13
98498 1.000 1" 25.400 1" 6" 3-1/4" - - 13
98500 1.000 1" 25.400 1" 7" 4-1/4" - - 13

35 6 MATERIAL HARDNESS (Rc)

0 6
