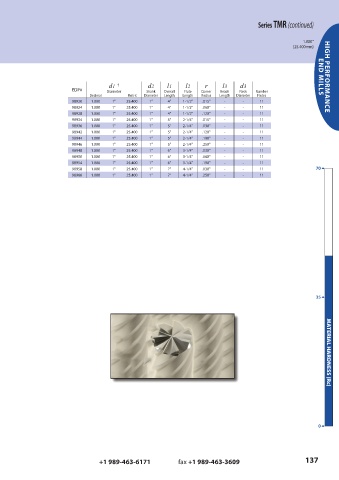

Page 137 - GARR_TOOL(CATALOG_INT)

Series TMR (continued)

1.000"
(25.400mm)

d1 † d2 l1 l2 r l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Corner Reach Neck Number
Decimal Metric Diameter Length Length Radius Length Diameter Flutes
98920 1.000 1" 25.400 1" 4" 1-1/2" .015" - - 11
98924 1.000 1" 25.400 1" 4" 1-1/2" .060" - - 11
98928 1.000 1" 25.400 1" 4" 1-1/2" .120" - - 11
98934 1.000 1" 25.400 1" 5" 2-1/4" .015" - - 11
98936 1.000 1" 25.400 1" 5" 2-1/4" .030" - - 11
98942 1.000 1" 25.400 1" 5" 2-1/4" .120" - - 11
98944 1.000 1" 25.400 1" 5" 2-1/4" .190" - - 11
98946 1.000 1" 25.400 1" 5" 2-1/4" .250" - - 11
98948 1.000 1" 25.400 1" 6" 3-1/4" .030" - - 11
98950 1.000 1" 25.400 1" 6" 3-1/4" .060" - - 11
98954 1.000 1" 25.400 1" 6" 3-1/4" .190" - - 11
98958 1.000 1" 25.400 1" 7" 4-1/4" .030" - - 11 70 6
98966 1.000 1" 25.400 1" 7" 4-1/4" .250" - - 11

35 6 MATERIAL HARDNESS (Rc)

0 6
