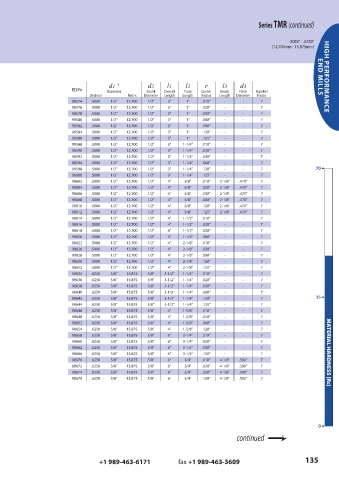

Page 135 - GARR_TOOL(CATALOG_INT)

Series TMR (continued)

.5000" - .6250"
(12.700mm - 15.875mm)

d1 † d2 l1 l2 r l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Corner Reach Neck Number
Decimal Metric Diameter Length Length Radius Length Diameter Flutes
98574 .5000 1/2" 12.700 1/2" 3" 1" .010" - - 7
98576 .5000 1/2" 12.700 1/2" 3" 1" .020" - - 7
98578 .5000 1/2" 12.700 1/2" 3" 1" .030" - - 7
98580 .5000 1/2" 12.700 1/2" 3" 1" .060" - - 7
98582 .5000 1/2" 12.700 1/2" 3" 1" .090" - - 7
98584 .5000 1/2" 12.700 1/2" 3" 1" .120" - - 7
98586 .5000 1/2" 12.700 1/2" 3" 1" .125" - - 7
98588 .5000 1/2" 12.700 1/2" 3" 1-1/4" .010" - - 7
98590 .5000 1/2" 12.700 1/2" 3" 1-1/4" .020" - - 7
98592 .5000 1/2" 12.700 1/2" 3" 1-1/4" .030" - - 7
98594 .5000 1/2" 12.700 1/2" 3" 1-1/4" .060" - - 7
98598 .5000 1/2" 12.700 1/2" 3" 1-1/4" .120" - - 7 70 6
98600 .5000 1/2" 12.700 1/2" 3" 1-1/4" .125" - - 7
98602 .5000 1/2" 12.700 1/2" 4" 5/8" .010" 2-1/8" .470" 7
98604 .5000 1/2" 12.700 1/2" 4" 5/8" .020" 2-1/8" .470" 7
98606 .5000 1/2" 12.700 1/2" 4" 5/8" .030" 2-1/8" .470" 7
98608 .5000 1/2" 12.700 1/2" 4" 5/8" .060" 2-1/8" .470" 7
98610 .5000 1/2" 12.700 1/2" 4" 5/8" .120" 2-1/8" .470" 7
98612 .5000 1/2" 12.700 1/2" 4" 5/8" .125" 2-1/8" .470" 7
98614 .5000 1/2" 12.700 1/2" 4" 1-1/2" .010" - - 7
98616 .5000 1/2" 12.700 1/2" 4" 1-1/2" .020" - - 7
98618 .5000 1/2" 12.700 1/2" 4" 1-1/2" .030" - - 7
98620 .5000 1/2" 12.700 1/2" 4" 1-1/2" .060" - - 7
98622 .5000 1/2" 12.700 1/2" 4" 2-1/8" .010" - - 7
98626 .5000 1/2" 12.700 1/2" 4" 2-1/8" .030" - - 7
98628 .5000 1/2" 12.700 1/2" 4" 2-1/8" .060" - - 7
98630 .5000 1/2" 12.700 1/2" 4" 2-1/8" .120" - - 7
98632 .5000 1/2" 12.700 1/2" 4" 2-1/8" .125" - - 7
98634 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .010" - - 7
98636 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .020" - - 7
98638 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .030" - - 7
98640 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .060" - - 7
98642 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .120" - - 7 35 6
98644 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .125" - - 7
98646 .6250 5/8" 15.875 5/8" 4" 1-5/8" .010" - - 7
98648 .6250 5/8" 15.875 5/8" 4" 1-5/8" .020" - - 7
98652 .6250 5/8" 15.875 5/8" 4" 1-5/8" .060" - - 7
98654 .6250 5/8" 15.875 5/8" 4" 1-5/8" .120" - - 7
98658 .6250 5/8" 15.875 5/8" 6" 3-1/4" .010" - - 7
98660 .6250 5/8" 15.875 5/8" 6" 3-1/4" .020" - - 7
98662 .6250 5/8" 15.875 5/8" 6" 3-1/4" .030" - - 7
98666 .6250 5/8" 15.875 5/8" 6" 3-1/4" .120" - - 7 MATERIAL HARDNESS (Rc)
98670 .6250 5/8" 15.875 5/8" 6" 3/4" .010" 4-1/8" .590" 7
98672 .6250 5/8" 15.875 5/8" 6" 3/4" .020" 4-1/8" .590" 7
98674 .6250 5/8" 15.875 5/8" 6" 3/4" .030" 4-1/8" .590" 7
98678 .6250 5/8" 15.875 5/8" 6" 3/4" .120" 4-1/8" .590" 7

0 6
continued ?

+1 989-463-6171 fax +1 989-463-3609 135
