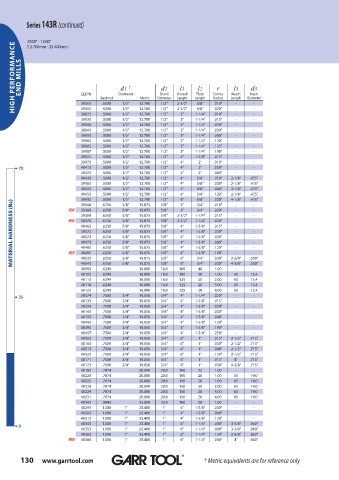

Page 130 - GARR_TOOL(CATALOG_INT)

Series 143R (continued)

.5000" - 1.000"
HIGH PERFORMANCE END MILLS EDP# Decimal Diameter Metric Diameter Overall Length Corner Length Diameter
(12.700mm - 25.400mm)

d1
r
†
d2
l3
l1
d3
l2
Flute
Reach
Shank
Neck
Radius
Length
5/8"
39353
.020"
5/8"
2-1/2"
12.700
1/2"
.5000
39355
1/2"
.5000
1/2"
1/2"
3"
.010"
39923
12.700
.5000
12.700
39933 .5000 1/2" 12.700 1/2" 2-1/2" 1-1/4" .010" - - - - - - - -
1/2"
.015"
1-1/4"
1/2"
3"
39356 .5000 1/2" 12.700 1/2" 3" 1-1/4" .020" - -
39943 .5000 1/2" 12.700 1/2" 3" 1-1/4" .030" - -
39953 .5000 1/2" 12.700 1/2" 3" 1-1/4" .060" - -
39963 .5000 1/2" 12.700 1/2" 3" 1-1/4" .120" - -
39965 .5000 1/2" 12.700 1/2" 3" 1-1/4" .125" - -
39967 .5000 1/2" 12.700 1/2" 3" 1-1/4" .190" - -
39972 .5000 1/2" 12.700 1/2" 4" 1-5/8" .015" - -
39973 .5000 1/2" 12.700 1/2" 4" 2" .010" - -
70 40413 .5000 1/2" 12.700 1/2" 4" 2" .030" - -
6
40423 .5000 1/2" 12.700 1/2" 4" 2" .060" - -
40433 .5000 1/2" 12.700 1/2" 4" 5/8" .010" 2-1/8" .475"
39983 .5000 1/2" 12.700 1/2" 4" 5/8" .030" 2-1/8" .475"
40443 .5000 1/2" 12.700 1/2" 4" 5/8" .060" 2-1/8" .475"
40453 .5000 1/2" 12.700 1/2" 4" 5/8" .120" 2-1/8" .475"
6"
39993 .5000 1/2" 12.700 1/2" 3-1/2" 1-1/4" .030" 4-1/8" .475"
5/8"
MATERIAL HARDNESS (Rc) NEW 39370 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .020" - - - - - - - - - - - -
3/4"
3"
-
.010"
-
39366
5/8"
15.875
.6250
5/8"
NEW
5/8"
.6250
5/8"
39368
15.875
-
-
.020"
3"
3/4"
15.875
39369
-
5/8"
-
5/8"
.015"
.6250
5/8"
1-5/8"
.015"
4"
40463
5/8"
15.875
.6250
15.875
1-5/8"
4"
.6250
5/8"
.020"
39372
5/8"
1-5/8"
5/8"
15.875
4"
.030"
.6250
5/8"
40023
5/8"
.6250
.060"
40473
4"
1-5/8"
15.875
5/8"
4"
5/8"
40483
5/8"
1-5/8"
.120"
15.875
.6250
NEW
-
40485
4"
-
5/8"
5/8"
6"
3/4"
.030"
.6250
15.875
40033
5/8"
.030"
40043
.6250
.590"
5/8"
5/8"
4-3/8"
15.875
6"
3/4"
40
40083 .6250 5/8" 15.875 16.0 100 1-5/8" .190" 2-3/8" .590"
.6299
-
16.000
-
1.00
40103 .6299 16.000 16.0 100 20 1.00 40 15.4
40113 .6299 16.000 16.0 125 20 2.00 60 15.4
40118 .6299 16.000 16.0 125 20 3.00 60 15.4
40123 .6299 16.000 16.0 125 20 4.00 60 15.4
35 39374 .7500 3/4" 19.050 3/4" 4" 1-1/4" .020" - -
6
40133 .7500 3/4" 19.050 3/4" 4" 1-5/8" .015" - -
39376 .7500 3/4" 19.050 3/4" 4" 1-5/8" .020" - -
40143 .7500 3/4" 19.050 3/4" 4" 1-5/8" .030" - -
40153 .7500 3/4" 19.050 3/4" 4" 1-5/8" .060" - -
40493 .7500 3/4" 19.050 3/4" 4" 1-5/8" .120" - -
40495 .7500 3/4" 19.050 3/4" 4" 1-5/8" .190" - -
40497 .7500 3/4" 19.050 3/4" 4" 1-5/8" .250" - -
40503 .7500 3/4" 19.050 3/4" 6" 1" .015" 2-1/2" .715"
40163 .7500 3/4" 19.050 3/4" 6" 1" .030" 2-1/2" .715"
40513 .7500 3/4" 19.050 3/4" 6" 1" .060" 2-1/2" .715"
40523 .7500 3/4" 19.050 3/4" 6" 1" .120" 2-1/2" .715"
40171 .7500 3/4" 19.050 3/4" 6" 1" .015" 4" .715"
40173 .7500 3/4" 19.050 3/4" 6" 1" .030" 4-3/8" .715"
40183 .7874 20.000 20.0 100 32 1.00 - -
40223 .7874 20.000 20.0 100 20 1.00 40 19.0
40225 .7874 20.000 20.0 150 20 1.00 65 19.0
40226 .7874 20.000 20.0 150 20 2.00 65 19.0
40229 .7874 20.000 20.0 150 20 3.00 65 19.0
40231 .7874 20.000 20.0 150 20 4.00 65 19.0
40243 .9843 25.000 25.0 100 38 1.00 - -
40293 1.000 1" 25.400 1" 4" 1-5/8" .030" - -
40303 1.000 1" 25.400 1" 4" 1-5/8" .060" - -
40313 1.000 1" 25.400 1" 4" 1-5/8" .120" - -
40343 1.000 1" 25.400 1" 6" 1-1/4" .030" 3-3/8" .960"
0
40353 1.000 1" 25.400 1" 6" 1-1/4" .060" 3-3/8" .960"
6
40363 1.000 1" 25.400 1" 6" 1-1/4" .120" 3-3/8" .960"
NEW 40366 1.000 1" 25.400 1" 6" 1-1/4" .030" 4" .960"
130 www.garrtool.com ® ® ® † Metric equivalents are for reference only
