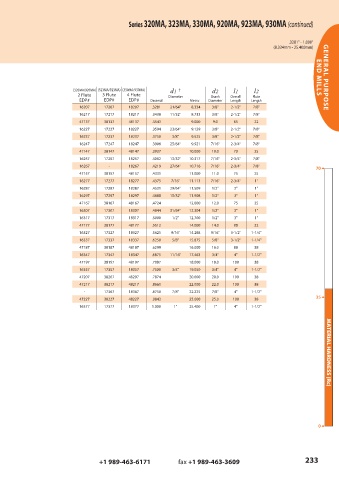

Series 320MA, 323MA, 330MA, 920MA, 923MA, 930MA (continued)

.3281" - 1.000"
(8.334mm - 25.400mm)

(320MA/920MA) (323MA/923MA) (330MA/930MA) d1 † d2 l1 l2 END MILLS GENERAL PURPOSE
2 Flute 3 Flute 4 Flute Diameter Shank Overall Flute
EDP# EDP# EDP# Decimal Metric Diameter Length Length
16207 17207 18207 .3281 21/64" 8.334 3/8" 2-1/2" 7/8"
16217 17217 18217 .3438 11/32" 8.733 3/8" 2-1/2" 7/8"
47137 38137 48137 .3543 9.000 9.0 65 22
16227 17227 18227 .3594 23/64" 9.129 3/8" 2-1/2" 7/8"
16237 17237 18237 .3750 3/8" 9.525 3/8" 2-1/2" 7/8"
16247 17247 18247 .3906 25/64" 9.921 7/16" 2-3/4" 7/8"
47147 38147 48147 .3937 10.000 10.0 70 25
16257 17257 18257 .4062 13/32" 10.317 7/16" 2-3/4" 7/8"
16267 - 18267 .4219 27/64" 10.716 7/16" 2-3/4" 7/8" 70 6
47157 38157 48157 .4331 11.000 11.0 75 25
16277 17277 18277 .4375 7/16" 11.113 7/16" 2-3/4" 1"
16287 17287 18287 .4531 29/64" 11.509 1/2" 3" 1"
16297 17297 18297 .4688 15/32" 11.908 1/2" 3" 1"
47167 38167 48167 .4724 12.000 12.0 75 25
16307 17307 18307 .4844 31/64" 12.304 1/2" 3" 1"
16317 17317 18317 .5000 1/2" 12.700 1/2" 3" 1"
47177 38177 48177 .5512 14.000 14.0 88 32
16327 17327 18327 .5625 9/16" 14.288 9/16" 3-1/2" 1-1/4"
16337 17337 18337 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4"
47187 38187 48187 .6299 16.000 16.0 88 38
16347 17347 18347 .6875 11/16" 17.463 3/4" 4" 1-1/2"
47197 38197 48197 .7087 18.000 18.0 100 38
16357 17357 18357 .7500 3/4" 19.050 3/4" 4" 1-1/2"
47207 38207 48207 .7874 20.000 20.0 100 38
47217 38217 48217 .8661 22.000 22.0 100 38
- 17367 18367 .8750 7/8" 22.225 7/8" 4" 1-1/2"
47227 38227 48227 .9843 25.000 25.0 100 38 35 6
16377 17377 18377 1.000 1" 25.400 1" 4" 1-1/2" MATERIAL HARDNESS (Rc)
