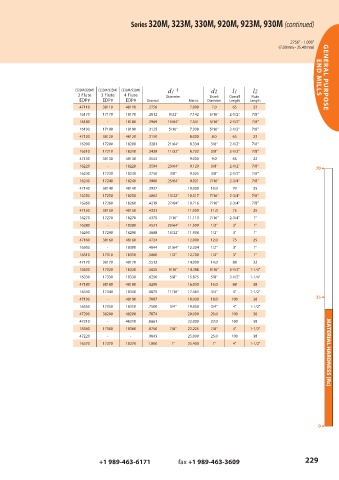

Page 229 - GARR_TOOL(CATALOG_INT)

Series 320M, 323M, 330M, 920M, 923M, 930M (continued)

.2756" - 1.000"
(7.00mm - 25.40mm)

(320M/920M) (323M/923M) (330M/930M) d1 † d2 l1 l2 END MILLS GENERAL PURPOSE
2 Flute 3 Flute 4 Flute Diameter Shank Overall Flute
EDP# EDP# EDP# Decimal Metric Diameter Length Length
47110 38110 48110 .2756 7.000 7.0 65 22
16170 17170 18170 .2812 9/32" 7.142 5/16" 2-1/2" 7/8"
16180 - 18180 .2969 19/64" 7.541 5/16" 2-1/2" 7/8"
16190 17190 18190 .3125 5/16" 7.938 5/16" 2-1/2" 7/8"
47120 38120 48120 .3150 8.000 8.0 65 22
16200 17200 18200 .3281 21/64" 8.334 3/8" 2-1/2" 7/8"
16210 17210 18210 .3438 11/32" 8.733 3/8" 2-1/2" 7/8"
47130 38130 48130 .3543 9.000 9.0 65 22
16220 - 18220 .3594 23/64" 9.129 3/8" 2-1/2" 7/8" 70 6
16230 17230 18230 .3750 3/8" 9.525 3/8" 2-1/2" 7/8"
16240 17240 18240 .3906 25/64" 9.921 7/16" 2-3/4" 7/8"
47140 38140 48140 .3937 10.000 10.0 70 25
16250 17250 18250 .4062 13/32" 10.317 7/16" 2-3/4" 7/8"
16260 17260 18260 .4219 27/64" 10.716 7/16" 2-3/4" 7/8"
47150 38150 48150 .4331 11.000 11.0 75 25
16270 17270 18270 .4375 7/16" 11.113 7/16" 2-3/4" 1"
16280 - 18280 .4531 29/64" 11.509 1/2" 3" 1"
16290 17290 18290 .4688 15/32" 11.908 1/2" 3" 1"
47160 38160 48160 .4724 12.000 12.0 75 25
16300 - 18300 .4844 31/64" 12.304 1/2" 3" 1"
16310 17310 18310 .5000 1/2" 12.700 1/2" 3" 1"
47170 38170 48170 .5512 14.000 14.0 88 32
16320 17320 18320 .5625 9/16" 14.288 9/16" 3-1/2" 1-1/4"
16330 17330 18330 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4"
47180 38180 48180 .6299 16.000 16.0 88 38
16340 17340 18340 .6875 11/16" 17.463 3/4" 4" 1-1/2"
47190 - 48190 .7087 18.000 18.0 100 38 35 6
16350 17350 18350 .7500 3/4" 19.050 3/4" 4" 1-1/2"
47200 38200 48200 .7874 20.000 20.0 100 38
47210 - 48210 .8661 22.000 22.0 100 38
16360 17360 18360 .8750 7/8" 22.225 7/8" 4" 1-1/2"
47220 - - .9843 25.000 25.0 100 38
16370 17370 18370 1.000 1" 25.400 1" 4" 1-1/2" MATERIAL HARDNESS (Rc)
