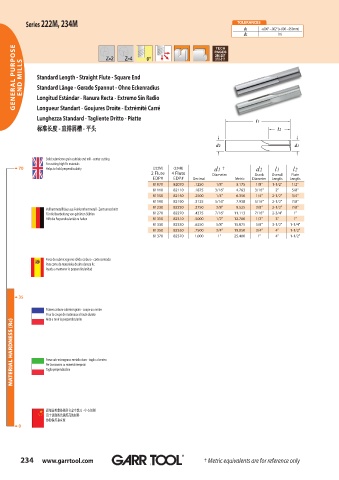

Page 234 - GARR_TOOL(CATALOG_INT)

Series 222M, 234M TOLERANCES
d1 +.000" –.002" (+.000 –.050mm)
d2 h6

GENERAL PURPOSE END MILLS Standard Length - Straight Flute - Square End 0° 310-311
286-287
Z2
=

Standard Länge - Gerade Spannut - Ohne Eckenradius
Longitud Estándar - Ranura Recta - Extremo Sin Radio

Longueur Standart - Goujures Droite - Extrémité Carré
Lunghezza Standard - Tagliente Dritto - Piatte
-
标准长度 - 直排屑槽 - 平头
标准长度
直排屑槽
平头

Solid submicron grain carbide end mill - center cutting
For cutting high Rc materials
70 Helps to hold perpendicularity (222M) (234M) d1 † d2 l1 l2
6
2 Flute 4 Flute Diameter Shank Overall Flute
EDP# EDP# Decimal Metric Diameter Length Length
81070 82070 .1250 1/8" 3.175 1/8" 1-1/2" 1/2"
81110 82110 .1875 3/16" 4.763 3/16" 2" 5/8"
81150 82150 .2500 1/4" 6.350 1/4" 2-1/2" 3/4"
81190 82190 .3125 5/16" 7.938 5/16" 2-1/2" 7/8"
Vollhartmetallfräser aus Feinkornhartmetall - Zentrumsschnitt 81230 82230 .3750 3/8" 9.525 3/8" 2-1/2" 7/8"
Für die Bearbeitung von gehärten Stählen 81270 82270 .4375 7/16" 11.113 7/16" 2-3/4" 1"
Hilft die Perpendicularität zu halten 81310 82310 .5000 1/2" 12.700 1/2" 3" 1"
81330 82330 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4"
81350 82350 .7500 3/4" 19.050 3/4" 4" 1-1/2"
81370 82370 1.000 1" 25.400 1" 4" 1-1/2"

Fresa de submicrograno sólido carburo - corte centrado
Para corte de materiales de alta dureza Rc
Ayuda a mantener la perpendicularidad

35
6
Fraises carbure submicrograin - coupe au centre
Pour la coupe de materiaux a haute durete
Aide a tenir la perpendicularite
MATERIAL HARDNESS (Rc) Fresa sub-micrograno metallo duro - taglio al centro

Per lavorazioni su materiali temprati
Taglio perpendicolare

超细晶粒整体硬质合金立铣刀 - 中心切削
用于切削洛氏硬度高的材料
协助保持垂直度
0
6

234 www.garrtool.com ® ® ® † Metric equivalents are for reference only
