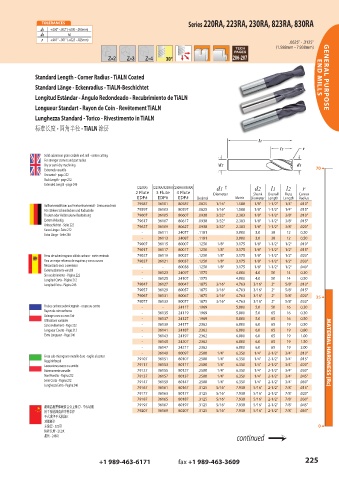

Page 225 - GARR_TOOL(CATALOG_INT)

Series 220RA, 223RA, 230RA, 823RA, 830RA
TOLERANCES
d1 +.000" –.002" (+.000 –.050mm)
d2 h6
r +.001" –.001" (+.025 –.025mm) .0625" - .3125"
(1.588mm - 7.938mm)
Z2 286-287
=

Standard Length - Corner Radius - TiALN Coated END MILLS GENERAL PURPOSE
Standard Länge - Eckenradius - TiALN-Beschichtet
Longitud Estándar - Ángulo Redondeado - Recubrimiento de TiALN

Longueur Standart - Rayon de Coin - Revêtement TiALN
Lunghezza Standard - Torico - Rivestimento in TiALN
标准长度 圆角半径 涂层
标准长度 - 圆角半径 - TiALN 涂层

Solid submicron grain carbide end mill - center cutting
For stronger corners and part radius
Dry or semi-dry machining
Extremely versatile 70 6
Uncoated - page 222
Stub Length - page 212
Extended Length - page 246
(220RA) (223RA/823RA) (230RA/830RA) d1 † d2 l1 l2 r
2 Flute 3 Flute 4 Flute Diameter Shank Overall Flute Corner
EDP# EDP# EDP# Decimal Metric Diameter Length Length Radius
Vollhartmetallfräser aus Feinkornhartmetall - Zentrumsschnitt 79587 36101 80587 .0625 1/16" 1.588 1/8" 1-1/2" 1/4" .010"
Für stärkere Schneidecken und Radiusteile 79597 36103 80597 .0625 1/16" 1.588 1/8" 1-1/2" 1/4" .015"
Trocken oder Halbtrockene Bearbeitung 79607 36105 80607 .0938 3/32" 2.383 1/8" 1-1/2" 3/8" .010"
Extrem Vielseitig 79617 36107 80617 .0938 3/32" 2.383 1/8" 1-1/2" 3/8" .015"
Unbeschichtet - Seite 222 79627 36109 80627 .0938 3/32" 2.383 1/8" 1-1/2" 3/8" .020"
Kurze Länge - Seite 212
Extra Länge - Seite 246 - 36111 24077 .1181 3.000 3.0 38 12 0.20
- 36113 24087 .1181 3.000 3.0 38 12 0.50
79007 36115 80007 .1250 1/8" 3.175 1/8" 1-1/2" 1/2" .010"
79017 36117 80017 .1250 1/8" 3.175 1/8" 1-1/2" 1/2" .015"
Fresa de submicrograno sólido carburo - corte centrado 79027 36119 80027 .1250 1/8" 3.175 1/8" 1-1/2" 1/2" .020"
Para un mejor refuerzo de esquinas y zonas curvas 79037 36121 80037 .1250 1/8" 3.175 1/8" 1-1/2" 1/2" .030"
Mecanizado seco o semiseco - - 80038 .1250 1/8" 3.175 1/8" 1-1/2" 1/2" .040"
Extremadamente versátil - 36123 24097 .1575 4.000 4.0 50 14 0.30
Sin recubrimiento - Página 222
Longitud Corta - Página 212 - 36125 24107 .1575 4.000 4.0 50 14 0.50
Longitud Extra - Página 246 79047 36127 80047 .1875 3/16" 4.763 3/16" 2" 5/8" .010"
79057 36129 80057 .1875 3/16" 4.763 3/16" 2" 5/8" .015"
79067 36131 80067 .1875 3/16" 4.763 3/16" 2" 5/8" .020" 35 6
79077 36133 80077 .1875 3/16" 4.763 3/16" 2" 5/8" .030"
Fraises carbure submicrograin - coupe au centre - - 24117 .1969 5.000 5.0 50 16 0.30
Rayon de coin renforces - 36135 24119 .1969 5.000 5.0 65 16 0.30
Usinage a sec ou avec l’air
Utilisations variables - 36137 24127 .1969 5.000 5.0 65 16 0.50
Sans revêtement - Page 222 - 36139 24177 .2362 6.000 6.0 65 19 0.50
Longueur Courte - Page 212 - 36141 24187 .2362 6.000 6.0 65 19 0.80
Extra Longueur - Page 246 - 36143 24197 .2362 6.000 6.0 65 19 1.00
- 36145 24207 .2362 6.000 6.0 65 19 1.50
- 36147 24217 .2362 6.000 6.0 65 19 2.00
- 36149 80097 .2500 1/4" 6.350 1/4" 2-1/2" 3/4" .010" MATERIAL HARDNESS (Rc)
Fresa sub-micrograno metallo duro - taglio al centro
Raggi rinforzati 79107 36151 80107 .2500 1/4" 6.350 1/4" 2-1/2" 3/4" .015"
Lavorazione a secco o a umido 79117 36153 80117 .2500 1/4" 6.350 1/4" 2-1/2" 3/4" .020"
Estremamente varsatile 79127 36155 80127 .2500 1/4" 6.350 1/4" 2-1/2" 3/4" .030"
Non Rivestito - Pagina 222 79137 36157 80137 .2500 1/4" 6.350 1/4" 2-1/2" 3/4" .045"
Serie Corta - Pagina 212 79147 36159 80147 .2500 1/4" 6.350 1/4" 2-1/2" 3/4" .060"
Lunghezza Extra - Pagina 246
79167 36161 80167 .3125 5/16" 7.938 5/16" 2-1/2" 7/8" .015"
79177 36163 80177 .3125 5/16" 7.938 5/16" 2-1/2" 7/8" .020"
79187 36165 80187 .3125 5/16" 7.938 5/16" 2-1/2" 7/8" .030"
79197 36167 80197 .3125 5/16" 7.938 5/16" 2-1/2" 7/8" .045"
超细晶粒整体硬质合金立铣刀 - 中心切削
用于强化圆角和零件半径 79207 36169 80207 .3125 5/16" 7.938 5/16" 2-1/2" 7/8" .060"
干式或半干式机加工
功能极多
未涂层 - 222页 0 6
短柱长度
短柱长度 - 212页
超长 - 246页
超长 - 246 页 continued ?
