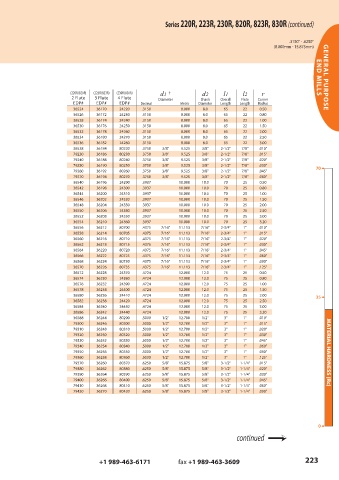

Page 223 - GARR_TOOL(CATALOG_INT)

Series 220R, 223R, 230R, 820R, 823R, 830R (continued)

.3150" - .6250"
(8.000mm - 15.875mm)

(220R/820R) (223R/823R) (230R/830R) d1 † d2 l1 l2 r END MILLS GENERAL PURPOSE
2 Flute 3 Flute 4 Flute Diameter Shank Overall Flute Corner
EDP# EDP# EDP# Decimal Metric Diameter Length Length Radius
36524 36170 24220 .3150 8.000 8.0 65 22 0.50
36526 36172 24230 .3150 8.000 8.0 65 22 0.80
36528 36174 24240 .3150 8.000 8.0 65 22 1.00
36530 36176 24250 .3150 8.000 8.0 65 22 1.50
36532 36178 24260 .3150 8.000 8.0 65 22 2.00
36534 36180 24270 .3150 8.000 8.0 65 22 2.50
36536 36182 24280 .3150 8.000 8.0 65 22 3.00
36538 36184 80220 .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .010"
79230 36186 80230 .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .015"
79240 36188 80240 .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .020"
79250 36190 80250 .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .030" 70
79260 36192 80260 .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .045" 6
79270 36194 80270 .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .060"
36540 36196 24290 .3937 10.000 10.0 70 25 0.50
36542 36198 24300 .3937 10.000 10.0 70 25 0.80
36544 36200 24310 .3937 10.000 10.0 70 25 1.00
36546 36202 24320 .3937 10.000 10.0 70 25 1.50
36548 36204 24330 .3937 10.000 10.0 70 25 2.00
36550 36206 24340 .3937 10.000 10.0 70 25 2.50
36552 36208 24350 .3937 10.000 10.0 70 25 3.00
36554 36210 24360 .3937 10.000 10.0 70 25 3.20
36556 36212 80700 .4375 7/16" 11.113 7/16" 2-3/4" 1" .010"
36558 36214 80705 .4375 7/16" 11.113 7/16" 2-3/4" 1" .015"
36560 36216 80710 .4375 7/16" 11.113 7/16" 2-3/4" 1" .020"
36562 36218 80715 .4375 7/16" 11.113 7/16" 2-3/4" 1" .030"
36564 36220 80720 .4375 7/16" 11.113 7/16" 2-3/4" 1" .045"
36566 36222 80725 .4375 7/16" 11.113 7/16" 2-3/4" 1" .060"
36568 36224 80730 .4375 7/16" 11.113 7/16" 2-3/4" 1" .090"
36570 36226 80735 .4375 7/16" 11.113 7/16" 2-3/4" 1" .125"
36572 36228 24370 .4724 12.000 12.0 75 25 0.50
36574 36230 24380 .4724 12.000 12.0 75 25 0.80
36576 36232 24390 .4724 12.000 12.0 75 25 1.00
36578 36234 24400 .4724 12.000 12.0 75 25 1.50
36580 36236 24410 .4724 12.000 12.0 75 25 2.00 35 6
36582 36238 24420 .4724 12.000 12.0 75 25 2.50
36584 36240 24430 .4724 12.000 12.0 75 25 3.00
36586 36242 24440 .4724 12.000 12.0 75 25 3.20
36588 36244 80290 .5000 1/2" 12.700 1/2" 3" 1" .010"
79300 36246 80300 .5000 1/2" 12.700 1/2" 3" 1" .015"
79310 36248 80310 .5000 1/2" 12.700 1/2" 3" 1" .020"
79320 36250 80320 .5000 1/2" 12.700 1/2" 3" 1" .030"
79330 36252 80330 .5000 1/2" 12.700 1/2" 3" 1" .045"
79340 36254 80340 .5000 1/2" 12.700 1/2" 3" 1" .060"
79350 36256 80350 .5000 1/2" 12.700 1/2" 3" 1" .090" MATERIAL HARDNESS (Rc)
79360 36258 80360 .5000 1/2" 12.700 1/2" 3" 1" .125"
79370 36260 80370 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .015"
79380 36262 80380 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .020"
79390 36264 80390 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .030"
79400 36266 80400 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .045"
79410 36268 80410 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .060"
79420 36270 80420 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .090"

0 6
continued ?
