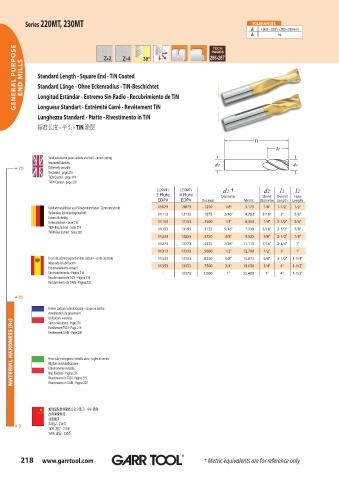

Series 220MT, 230MT TOLERANCES
d1 +.000" –.002" (+.000 –.050mm)
d2 h6
GENERAL PURPOSE END MILLS Standard Length - Square End - TiN Coated 286-287
Z2
=
Standard Länge - Ohne Eckenradius - TiN-Beschichtet
Longitud Estándar - Extremo Sin Radio - Recubrimiento de TiN
Longueur Standart - Extrémité Carré - Revêtement TiN
Lunghezza Standard - Piatte - Rivestimento in TiN
标准长度 - 平头 - TiN 涂层
标准长度 平头 涂层
Solid submicron grain carbide end mill - center cutting
Improved lubricity
70 Extremely versatile
6
Uncoated - page 216
TiCN Coated - page 219
TiAlN Coated - page 220
(220MT) (230MT) d1 † d2 l1 l2
2 Flute 4 Flute Diameter Shank Overall Flute
EDP# EDP# Decimal Metric Diameter Length Length
Vollhartmetallfräser aus Feinkornhartmetall - Zentrumsschnitt 11073 13073 .1250 1/8" 3.175 1/8" 1-1/2" 1/2"
Verbessere Schmiereingenschaft 11113 13113 .1875 3/16" 4.763 3/16" 2" 5/8"
Extrem Vielseitig
Unbeschichtet - Seite 216 11153 13153 .2500 1/4" 6.350 1/4" 2-1/2" 3/4"
TiCN-Beschichtet - Seite 219 11193 13193 .3125 5/16" 7.938 5/16" 2-1/2" 7/8"
TiAlN-Beschichtet - Seite 220
11233 13233 .3750 3/8" 9.525 3/8" 2-1/2" 7/8"
11273 13273 .4375 7/16" 11.113 7/16" 2-3/4" 1"
11313 13313 .5000 1/2" 12.700 1/2" 3" 1"
Fresa de submicrograno sólido carburo - corte centrado 11333 13333 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4"
Majorada la lubricación
Extremadamente versátil 11353 13353 .7500 3/4" 19.050 3/4" 4" 1-1/2"
Sin recubrimiento - Página 216 - 13373 1.000 1" 25.400 1" 4" 1-1/2"
Recubrimiento de TiCN - Página 219
Recubrimiento de TiAlN - Página 220
35
6
Fraises carbure submicrograin - coupe au centre
Amelioration du glissement
Utilisations variables
MATERIAL HARDNESS (Rc) Fresa sub-micrograno metallo duro - taglio al centro
Sans revêtement - Page 216
Revêtement TiCN - Page 219
Revêtement TiAlN - Page 220
Migliore autolubrificazione
Estremamente varsatile
Non Rivestito - Pagina 216
Rivestimento in TiCN - Pagina 219
Rivestimento in TiAlN - Pagina 220
超细晶粒整体硬质合金立铣刀 - 中心切削
改善润滑性能
功能极多
0 未涂层 - 216页
TiCN 涂层 - 219页
6
TiAlN 涂层 - 220页
