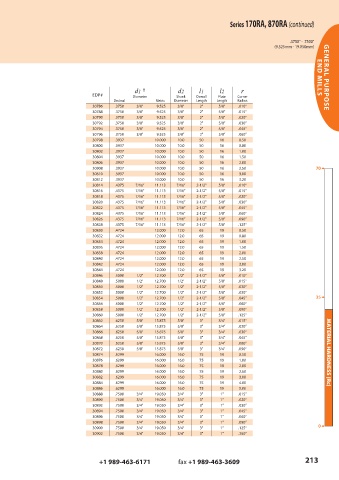

Page 213 - GARR_TOOL(CATALOG_INT)

Series 170RA, 870RA (continued)

.3750" - .7500"
(9.525mm - 19.050mm)

d1 † d2 l1 l2 r END MILLS GENERAL PURPOSE
EDP# Diameter Shank Overall Flute Corner
Decimal Metric Diameter Length Length Radius
30786 .3750 3/8" 9.525 3/8" 2" 5/8" .010"
30788 .3750 3/8" 9.525 3/8" 2" 5/8" .015"
30790 .3750 3/8" 9.525 3/8" 2" 5/8" .020"
30792 .3750 3/8" 9.525 3/8" 2" 5/8" .030"
30794 .3750 3/8" 9.525 3/8" 2" 5/8" .045"
30796 .3750 3/8" 9.525 3/8" 2" 5/8" .060"
30798 .3937 10.000 10.0 50 16 0.50
30800 .3937 10.000 10.0 50 16 0.80
30802 .3937 10.000 10.0 50 16 1.00
30804 .3937 10.000 10.0 50 16 1.50
30806 .3937 10.000 10.0 50 16 2.00
30808 .3937 10.000 10.0 50 16 2.50 70 6
30810 .3937 10.000 10.0 50 16 3.00
30812 .3937 10.000 10.0 50 16 3.20
30814 .4375 7/16" 11.113 7/16" 2-1/2" 5/8" .010"
30816 .4375 7/16" 11.113 7/16" 2-1/2" 5/8" .015"
30818 .4375 7/16" 11.113 7/16" 2-1/2" 5/8" .020"
30820 .4375 7/16" 11.113 7/16" 2-1/2" 5/8" .030"
30822 .4375 7/16" 11.113 7/16" 2-1/2" 5/8" .045"
30824 .4375 7/16" 11.113 7/16" 2-1/2" 5/8" .060"
30826 .4375 7/16" 11.113 7/16" 2-1/2" 5/8" .090"
30828 .4375 7/16" 11.113 7/16" 2-1/2" 5/8" .125"
30830 .4724 12.000 12.0 65 19 0.50
30832 .4724 12.000 12.0 65 19 0.80
30834 .4724 12.000 12.0 65 19 1.00
30836 .4724 12.000 12.0 65 19 1.50
30838 .4724 12.000 12.0 65 19 2.00
30840 .4724 12.000 12.0 65 19 2.50
30842 .4724 12.000 12.0 65 19 3.00
30844 .4724 12.000 12.0 65 19 3.20
30846 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .010"
30848 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .015"
30850 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .020"
30852 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .030"
30854 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .045" 35 6
30856 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .060"
30858 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .090"
30860 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .125"
30862 .6250 5/8" 15.875 5/8" 3" 3/4" .015"
30864 .6250 5/8" 15.875 5/8" 3" 3/4" .020"
30866 .6250 5/8" 15.875 5/8" 3" 3/4" .030"
30868 .6250 5/8" 15.875 5/8" 3" 3/4" .045"
30870 .6250 5/8" 15.875 5/8" 3" 3/4" .060"
30872 .6250 5/8" 15.875 5/8" 3" 3/4" .090"
30874 .6299 16.000 16.0 75 19 0.50 MATERIAL HARDNESS (Rc)
30876 .6299 16.000 16.0 75 19 1.00
30878 .6299 16.000 16.0 75 19 2.00
30880 .6299 16.000 16.0 75 19 2.50
30882 .6299 16.000 16.0 75 19 3.00
30884 .6299 16.000 16.0 75 19 4.00
30886 .6299 16.000 16.0 75 19 5.00
30888 .7500 3/4" 19.050 3/4" 3" 1" .015"
30890 .7500 3/4" 19.050 3/4" 3" 1" .020"
30892 .7500 3/4" 19.050 3/4" 3" 1" .030"
30894 .7500 3/4" 19.050 3/4" 3" 1" .045"
30896 .7500 3/4" 19.050 3/4" 3" 1" .060"
30898 .7500 3/4" 19.050 3/4" 3" 1" .090"
30900 .7500 3/4" 19.050 3/4" 3" 1" .125" 0 6
30902 .7500 3/4" 19.050 3/4" 3" 1" .250"
