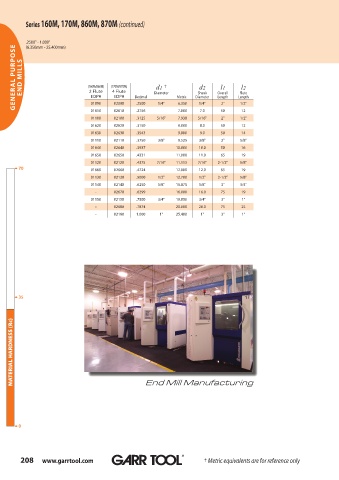

Page 208 - GARR_TOOL(CATALOG_INT)

Series 160M, 170M, 860M, 870M (continued)

.2500" - 1.000"
GENERAL PURPOSE END MILLS (160M/860M) (170M/870M) Decimal Diameter Metric Diameter Overall Length
(6.350mm - 25.400mm)

d1
†
d2
l2
l1
2 Flute
4 Flute
Flute
Shank
EDP#
EDP#
Length
1/4"
01090
1/4"
02610
7.000
7.0
50
01610
.2756
12
1/2"
2"
02100
7.938
01100 02090 .2500 5/16" 6.350 5/16" 2" 1/2"
.3125
01620 02620 .3150 8.000 8.0 50 12
01630 02630 .3543 9.000 9.0 50 14
01110 02110 .3750 3/8" 9.525 3/8" 2" 5/8"
01640 02640 .3937 10.000 10.0 50 16
01650 02650 .4331 11.000 11.0 65 19
01120 02120 .4375 7/16" 11.113 7/16" 2-1/2" 5/8"
70 01660 02660 .4724 12.000 12.0 65 19
6
01130 02130 .5000 1/2" 12.700 1/2" 2-1/2" 5/8"
01140 02140 .6250 5/8" 15.875 5/8" 3" 3/4"
- 02670 .6299 16.000 16.0 75 19
01150 02150 .7500 3/4" 19.050 3/4" 3" 1"
- 02680 .7874 20.000 20.0 75 25
- 02160 1.000 1" 25.400 1" 3" 1"

35
6

MATERIAL HARDNESS (Rc) End Mill Manufacturing

0
6

208 www.garrtool.com ® ® ® † Metric equivalents are for reference only
