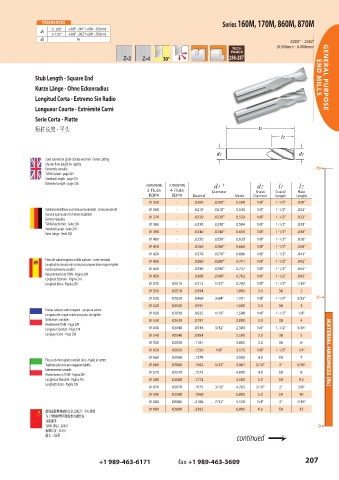

P. 207
TOLERANCES Series 160M, 170M, 860M, 870M
[ .030" +.000" –.001" (+.000 –.025mm)
d1
á 1/32" +.000" –.002" (+.000 –.050mm)
d2 h6 .0200" - .2362"
(0.508mm - 6.000mm)
Z2 286-287
=
Stub Length - Square End END MILLS GENERAL PURPOSE
Kurze Länge - Ohne Eckenradius
Longitud Corta - Extremo Sin Radio
Longueur Courte - Extrémité Carré
Serie Corta - Piatte
平头
短柱长度
短柱长度 - 平头
Solid submicron grain carbide end mill - center cutting
Shorter flute length for rigidity
70
Extremely versatile 70 6
6
TiAlN Coated - page 209
Standard Length - page 216
Extended Length - page 238 (160M/860M) (170M/870M) d1 † d2 l1 l2
2 Flute 4 Flute Diameter Shank Overall Flute
EDP# EDP# Decimal Metric Diameter Length Length
01350 - .0200 .0200" 0.508 1/8" 1-1/2" .030"
Vollhartmetallfräser aus Feinkornhartmetall - Zentrumsschnitt 01360 - .0210 .0210" 0.533 1/8" 1-1/2" .032"
Kürzere Spannuten für höhere Stabilität
Extrem Vielseitig 01370 - .0220 .0220" 0.559 1/8" 1-1/2" .033"
TiAlN-Beschichtet - Seite 209 01380 - .0230 .0230" 0.584 1/8" 1-1/2" .035"
Standard Länge - Seite 216
Extra Länge - Seite 238 01390 - .0240 .0240" 0.610 1/8" 1-1/2" .036"
01400 - .0250 .0250" 0.635 1/8" 1-1/2" .038"
01410 - .0260 .0260" 0.660 1/8" 1-1/2" .039"
01420 - .0270 .0270" 0.686 1/8" 1-1/2" .041"
Fresa de submicrograno sólido carburo - corte centrado 01430 - .0280 .0280" 0.711 1/8" 1-1/2" .042"
Longitud de ranura más corta para proporcionar mayor rigidez
Extremadamente versátil 01440 - .0290 .0290" 0.737 1/8" 1-1/2" .044"
Recubrimiento de TiAlN - Página 209 01450 - .0300 .0300" 0.762 1/8" 1-1/2" .045"
Longitud Estándar - Página 216
Longitud Extra - Página 238 01010 02010 .0312 1/32" 0.792 1/8" 1-1/2" 1/16"
01510 02510 .0394 1.000 3.0 38 2
35
01020 02020 .0469 3/64" 1.191 1/8" 1-1/2" 3/32" 35 6
6
01520 02520 .0591 1.500 3.0 38 3
Fraises carbure submicrograin - coupe au centre
Longueur de coupe courte pour plus de rigidite 01030 02030 .0625 1/16" 1.588 1/8" 1-1/2" 1/8"
Utilisations variables 01530 02530 .0787 2.000 3.0 38 4
Revêtement TiAlN - Page 209
Longueur Standart - Page 216 01040 02040 .0938 3/32" 2.383 1/8" 1-1/2" 3/16"
Longueur Extra - Page 238 01540 02540 .0984 2.500 3.0 38 5
01550 02550 .1181 3.000 3.0 38 6
01050 02050 .1250 1/8" 3.175 1/8" 1-1/2" 1/4" MATERIAL HARDNESS (Rc)
01560 02560 .1378 3.500 4.0 50 7
Fresa sub-micrograno metallo duro - taglio al centro
Tagliente più corto per maggiore rigidità 01060 02060 .1562 5/32" 3.967 3/16" 2" 5/16"
Estremamente varsatile 01570 02570 .1575 4.000 4.0 50 8
Rivestimento in TiAlN - Pagina 209
Lunghezza Standard - Pagina 216 01580 02580 .1772 4.500 5.0 50 9.5
Lunghezza Extra - Pagina 238
01070 02070 .1875 3/16" 4.763 3/16" 2" 3/8"
MATERIAL HARDNESS (Rc)
01590 02590 .1969 5.000 5.0 50 10
01080 02080 .2188 7/32" 5.558 1/4" 2" 7/16"
01600 02600 .2362 6.000 6.0 50 12
超细晶粒整体硬质合金立铣刀 - 中心切削
为了增加刚性应缩短出屑槽长度
功能极多
TiAlN 涂层 - 209页 0 0 6
6
标准长度
标准长度 - 216页
- 238
超长 - 238页 continued ?
超长
+1 989-463-6171 fax +1 989-463-3609 207
