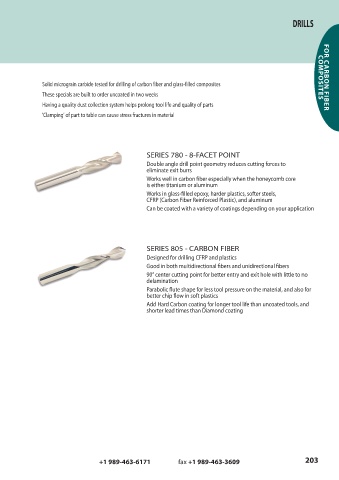

Page 203 - GARR_TOOL(CATALOG_INT)

DRILLS

Solid micrograin carbide tested for drilling of carbon fiber and glass-filled composites COMPOSITES FOR CARBON FIBER
These specials are built to order uncoated in two weeks
Having a quality dust collection system helps prolong tool life and quality of parts
'Clamping' of part to table can cause stress fractures in material

SERIES 780 - 8-FACET POINT
Double angle drill point geometry reduces cutting forces to
eliminate exit burrs
Works well in carbon fiber especially when the honeycomb core
is either titanium or aluminum
Works in glass-filled epoxy, harder plastics, softer steels,
CFRP (Carbon Fiber Reinforced Plastic), and aluminum
Can be coated with a variety of coatings depending on your application

SERIES 805 - CARBON FIBER
Designed for drilling CFRP and plastics
Good in both multidirectional fibers and unidirectional fibers
90° center cutting point for better entry and exit hole with little to no
delamination
Parabolic flute shape for less tool pressure on the material, and also for
better chip flow in soft plastics
Add Hard Carbon coating for longer tool life than uncoated tools, and
shorter lead times than Diamond coating

+1 989-463-6171 fax +1 989-463-3609 203
