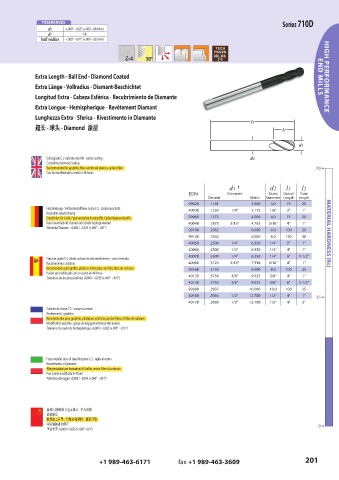

P. 201

TOLERANCES                                                                          Series 710D
                  d1    +.000" –.002" (+.000 –.050mm)
                  d2          h6
               ball radius  +.000" –.001" (+.000 –.025mm)


                                                                            288, 289,
                                                                             315

             Extra Length - Ball End - Diamond Coated                                                            END MILLS  HIGH PERFORMANCE
             Extra Länge - Vollradius - Diamant-Beschichtet
             Longitud Extra - Cabeza Esférica - Recubrimiento de Diamante
             Extra Longue - Hemispherique - Revêtement Diamant

             Lunghezza Extra - Sferica - Rivestimento in Diamante
                       -
                  -

             超长 - 球头 - Diamond 涂层
             超长
                  球头
                                涂层
                 Solid grade C-2 carbide end mill - center cutting
                 Crystalline diamond coating
                 Recommended for graphite, fiber-reinforced plastics, carbon fiber                              70  6
                 Can be modified with a neck in 48 hours

                                                                                  d1  †         d2    l1   l2
                                                                   EDP#          Diameter      Shank  Overall  Flute
                                                                          Decimal        Metric  Diameter Length  Length
                                                                   99028   .1181         3.000  3.0   75   20
                 Hochleistungs- Vollhartmetallfräser Sorte C-2 - Zentrumsschnitt  40038  .1250  1/8"  3.175  1/8"  3"  1"
                 Krystalline Beschichtung
                 Empfohlen für Grafit, Faserverstärkte Kunststoffe, Carbonfaserwerkstoffe  99068  .1575  4.000  4.0  75  25
                 Kann innerhalb 48 Stunden am Schaft verjüngt werden  40048  .1875  3/16"  4.763  3/16"  4"  1"
                 Vollradius Toleranz:  +0,000 / –0,025 (+.000"  –.001")  99108  .2362    6.000  6.0  100   25
                                                                   99128   .2362         6.000  6.0  150   38       MATERIAL HARDNESS (Rc)
                                                                   40058   .2500  1/4"   6.350  1/4"  3"   1"
                                                                   40068   .2500  1/4"   6.350  1/4"  4"   1"
                                                                   40078   .2500  1/4"   6.350  1/4"  6"  1-1/2"
                 Fresa de grado C-2 sólido carburo de alto rendimiento - corte centrado
                 Recubrimiento cristalino                          40098   .3125  5/16"  7.938  5/16"  4"  1"
                 Recomendado para grafito, plásticos reforzados con fibra, fibra de carbono  99168  .3150  8.000  8.0  100  25
                 Puede ser modificado con un cuello en 48 horas
                 Tolerancia de la cabeza esférica +0,000 / –0,025 (+.000"  –.001")  40128  .3750  3/8"  9.525  3/8"  4"  1"
                                                                   40138   .3750  3/8"   9.525  3/8"  6"  1-1/2"
                                                                   99208   .3937         10.000  10.0  100  25
                                                                   40168   .5000  1/2"   12.700  1/2"  4"  1"   35  6
                                                                   40178   .5000  1/2"   12.700  1/2"  4"  2"
                 Carbure de classe C-2 - coupe au centre
                 Revêtement Crystalline
                 Recommandee pour graphite, plastiques renforcés par des fibres et fibre de carbone
                 Modification possible : gorge de dégagement (sous 48 Heures)
                 Tolerance du rayon de hemispherique +0,000 / –0,025 (+.000"  –.001")





                 Fresa metallo duro di classificazione C-2 - taglio al centro
                 Rivestimento al diamante
                 Alte prestazioni per lavorazioni di Grafite, resine, fibre di carbonio
                 Può essere modificata in 48 ore
                 Tolleranza del raggio +0,000 / –0,025 (+.000"  –.001")





                 高效C-2级硬质合金立铣刀 - 中心切削
                 晶体涂层
                 推荐加工石墨、纤维补强塑料、碳素纤维
                 可用轴颈进行修正                                                                                        0  6
                 半径允差 +0,000 /–0,025 (+.000"–.001")




                                    +1 989-463-6171                    fax +1 989-463-3609                  201
