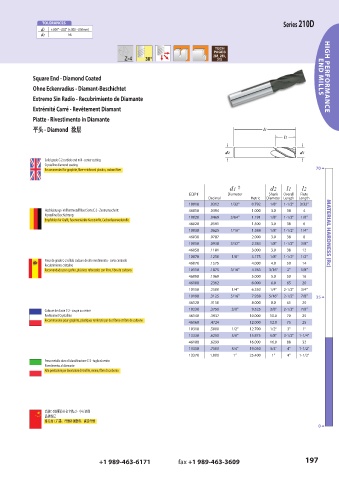

Page 197 - GARR_TOOL(CATALOG_INT)

Series 210D
TOLERANCES
d1 +.000" –.002" (+.000 –.050mm)
d2 h6

288, 289,
315

Square End - Diamond Coated END MILLS HIGH PERFORMANCE
Ohne Eckenradius - Diamant-Beschichtet

Extremo Sin Radio - Recubrimiento de Diamante
Extrémité Carré - Revêtement Diamant
Piatte - Rivestimento in Diamante

平头 涂层
平头 - Diamond 涂层

Solid grade C-2 carbide end mill - center cutting
Crystalline diamond coating
Recommended for graphite, fiber-reinforced plastics, carbon fiber 70 6

d1 † d2 l1 l2
EDP# Diameter Shank Overall Flute
Decimal Metric Diameter Length Length
10018 .0312 1/32" 0.792 1/8" 1-1/2" 3/32"
Hochleistungs- Vollhartmetallfräser Sorte C-2 - Zentrumsschnitt 46018 .0394 1.000 3.0 38 4
Krystalline Beschichtung 10028 .0469 3/64" 1.191 1/8" 1-1/2" 1/8"
Empfohlen für Grafit, Faserverstärkte Kunststoffe, Carbonfaserwerkstoffe
46028 .0591 1.500 3.0 38 6
10038 .0625 1/16" 1.588 1/8" 1-1/2" 1/4" MATERIAL HARDNESS (Rc)
46038 .0787 2.000 3.0 38 8
10058 .0938 3/32" 2.383 1/8" 1-1/2" 3/8"
46058 .1181 3.000 3.0 38 12
10078 .1250 1/8" 3.175 1/8" 1-1/2" 1/2"
Fresa de grado C-2 sólido carburo de alto rendimiento - corte centrado
Recubrimiento cristalino 46078 .1575 4.000 4.0 50 14
Recomendado para grafito, plásticos reforzados con fibra, fibra de carbono 10118 .1875 3/16" 4.763 3/16" 2" 5/8"
46098 .1969 5.000 5.0 50 16
46108 .2362 6.000 6.0 65 20
10158 .2500 1/4" 6.350 1/4" 2-1/2" 3/4"
10198 .3125 5/16" 7.938 5/16" 2-1/2" 7/8" 35 6
46128 .3150 8.000 8.0 65 20
Carbure de classe C-2 - coupe au centre 10238 .3750 3/8" 9.525 3/8" 2-1/2" 7/8"
Revêtement Crystalline 46148 .3937 10.000 10.0 70 25
Recommandee pour graphite, plastiques renforcés par des fibres et fibre de carbone 46168 .4724 12.000 12.0 75 25
10318 .5000 1/2" 12.700 1/2" 3" 1"
13338 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4"
46188 .6299 16.000 16.0 88 32
13358 .7500 3/4" 19.050 3/4" 4" 1-1/2"
13378 1.000 1" 25.400 1" 4" 1-1/2"
Fresa metallo duro di classificazione C-2 - taglio al centro
Rivestimento al diamante
Alte prestazioni per lavorazioni di Grafite, resine, fibre di carbonio

高效C-2级硬质合金立铣刀 - 中心切削
晶体涂层
推荐加工石墨、纤维补强塑料、碳素纤维
0 6

+1 989-463-6171 fax +1 989-463-3609 197
