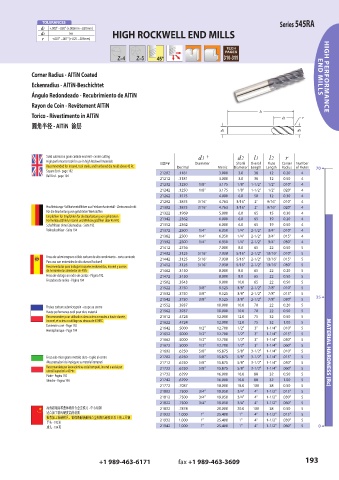

Page 193 - GARR_TOOL(CATALOG_INT)

TOLERANCES Series 545RA
d1 +.000" –.002" (+.000mm –.050mm)
d2 h6 HIGH ROCKWELL END MILLS
r +.001" –.001" (+.025 –.025mm)

310-311

Corner Radius - AlTiN Coated END MILLS HIGH PERFORMANCE

Eckenradius - AlTiN-Beschichtet
Ángulo Redondeado - Recubrimiento de AlTiN
Rayon de Coin - Revêtement AlTiN
Torico - Rivestimento in AlTiN

圆角半径 - AlTiN 涂层
圆角半径 - 涂层

Solid submicron grain carbide end mill - center cutting d1 † d2 l1 l2 r
High performance tool for use in high Rockwell materials EDP# Diameter Shank Overall Flute Corner Number
Recommended for inconel, tool steels, and hardened die mold above 45 Rc Decimal Metric Diameter Length Length Radius of Flutes 70 6
Square End - page 192 21202 .1181 3.000 3.0 38 12 0.20 4
Ball End - page 194
21212 .1181 3.000 3.0 38 12 0.50 4
21232 .1250 1/8" 3.175 1/8" 1-1/2" 1/2" .010" 4
21242 .1250 1/8" 3.175 1/8" 1-1/2" 1/2" .020" 4
21262 .1575 4.000 6.0 50 12 0.30 4
21292 .1875 3/16" 4.763 3/16" 2" 9/16" .010" 4
Hochleistungs- Vollhartmetallfräser aus Feinkornhartmetall - Zentrumsschnitt 21302 .1875 3/16" 4.763 3/16" 2" 9/16" .020" 4
Für die Bearbeitung von gehärteten Werkstoffen 21322 .1969 5.000 6.0 65 15 0.30 4
Empfohlen für Empfohlen für die Bearbeitung von gehärteten
Formenbaustählen, Inconel und Werkzeugstählen über 45 HRc 21342 .2362 6.000 6.0 65 19 0.20 4
Schaftfräser ohne Eckenradius - Seite 192 21352 .2362 6.000 6.0 65 19 0.50 4
Vollradiusfräser - Seite 194 21372 .2500 1/4" 6.350 1/4" 2-1/2" 3/4" .010" 4
21382 .2500 1/4" 6.350 1/4" 2-1/2" 3/4" .015" 4
21392 .2500 1/4" 6.350 1/4" 2-1/2" 3/4" .030" 4
21412 .2756 7.000 8.0 65 22 0.50 5
21432 .3125 5/16" 7.938 5/16" 2-1/2" 13/16" .010" 5
Fresa de submicrograno sólido carburo de alto rendimiento - corte centrado 21442 .3125 5/16" 7.938 5/16" 2-1/2" 13/16" .015" 5
Para uso con materiales de alta dureza Rockwell
Recomendadas para trabajar troqueles endurecidos, inconel y aceros 21452 .3125 5/16" 7.938 5/16" 2-1/2" 13/16" .030" 5
de herramientas alrededor de 45Rc 21462 .3150 8.000 8.0 65 22 0.20 5
Fresa de vástago sin radio de cantos - Página 192 21472 .3150 8.000 8.0 65 22 0.50 5
Fresadora de radios - Página 194 21502 .3543 9.000 10.0 65 22 0.50 5
21522 .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .010" 5
21532 .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .015" 5
21542 .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .030" 5 35 6
Fraises carbure submicrograin - coupe au centre 21552 .3937 10.000 10.0 70 22 0.20 5
Haute performance outil pour durs material 21562 .3937 10.000 10.0 70 22 0.50 5
Recommandee pour utilisation dans aciers a moules a haute durete, 21612 .4724 12.000 12.0 75 32 0.50 5
inconel, et aciers a outillage au dessus de 45HRC 21622 .4724 12.000 12.0 75 32 1.00 5
Extrémité carré - Page 192
Hemispherique - Page 194 21642 .5000 1/2" 12.700 1/2" 3" 1-1/4" .010" 5
21652 .5000 1/2" 12.700 1/2" 3" 1-1/4" .015" 5
21662 .5000 1/2" 12.700 1/2" 3" 1-1/4" .030" 5
21672 .5000 1/2" 12.700 1/2" 3" 1-1/4" .060" 5
21692 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .010" 5 MATERIAL HARDNESS (Rc)
Fresa sub-micrograno metallo duro - taglio al centro 21702 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .015" 5
Alte prestazioni da impiegare su materiali temprati 21712 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .030" 5
Raccomandata per lavorazioni su acciai temprati, inconel e acciai per 21722 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .060" 5
utensili superiori a 45 Hrc
Piatte - Pagina 192 21732 .6299 16.000 16.0 88 32 0.50 5
Sferiche - Pagina 194 21742 .6299 16.000 16.0 88 32 1.00 5
21772 .7087 18.000 18.0 100 38 0.50 5
21802 .7500 3/4" 19.050 3/4" 4" 1-1/2" .015" 5
21812 .7500 3/4" 19.050 3/4" 4" 1-1/2" .030" 5
21822 .7500 3/4" 19.050 3/4" 4" 1-1/2" .060" 5
高效超细晶粒整体硬质合金立铣刀 - 中心切削 21832 .7874 20.000 20.0 100 38 0.50 5
适合加工洛氏硬度高的材质 21922 1.000 1" 25.400 1" 4" 1-1/2" .015" 5
推荐加工淬硬模具、铬镍铁耐热耐蚀合金和洛氏硬度45以上的工具钢 21932 1.000 1" 25.400 1" 4" 1-1/2" .030" 5
平头 - 192页
球头 - 194页 21942 1.000 1" 25.400 1" 4" 1-1/2" .060" 5 0 6

+1 989-463-6171 fax +1 989-463-3609 193
