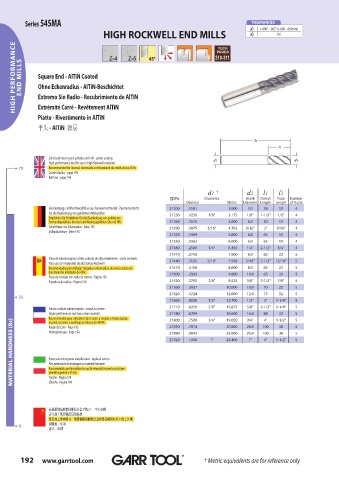

Page 192 - GARR_TOOL(CATALOG_INT)

Series 545MA TOLERANCES
HIGH ROCKWELL END MILLS d1 +.000" –.002" (+.000 –.050mm)
h6
d2
HIGH PERFORMANCE END MILLS Square End - AlTiN Coated 310-311

Ohne Eckenradius - AlTiN-Beschichtet
Extremo Sin Radio - Recubrimiento de AlTiN
Extrémité Carré - Revêtement AlTiN

Piatte - Rivestimento in AlTiN

平头 - AlTiN 涂层
平头
涂层

Solid submicron grain carbide end mill - center cutting
High performance tool for use in high Rockwell materials
6 70 Recommended for inconel, tool steels, and hardened die mold above 45 Rc
70
6
Corner Radius - page 193
Ball End - page 194
d1 † d2 l1 l2
EDP# Diameter Shank Overall Flute Number
Decimal Metric Diameter Length Length of Flutes
Hochleistungs- Vollhartmetallfräser aus Feinkornhartmetall - Zentrumsschnitt 21200 .1181 3.000 3.0 38 12 4
Für die Bearbeitung von gehärteten Werkstoffen 21230 .1250 1/8" 3.175 1/8" 1-1/2" 1/2" 4
Empfohlen für Empfohlen für die Bearbeitung von gehärteten
Formenbaustählen, Inconel und Werkzeugstählen über 45 HRc 21260 .1575 4.000 6.0 50 12 4
Schaftfräser mit Eckenradius - Seite 193 21290 .1875 3/16" 4.763 3/16" 2" 9/16" 4
Vollradiusfräser - Seite 194
21320 .1969 5.000 6.0 65 15 4
21350 .2362 6.000 6.0 65 19 4
21380 .2500 1/4" 6.350 1/4" 2-1/2" 3/4" 4
21410 .2756 7.000 8.0 65 22 5
Fresa de submicrograno sólido carburo de alto rendimiento - corte centrado
Para uso con materiales de alta dureza Rockwell 21440 .3125 5/16" 7.938 5/16" 2-1/2" 13/16" 5
Recomendadas para trabajar troqueles endurecidos, inconel y aceros de 21470 .3150 8.000 8.0 65 22 5
herramientas alrededor de 45Rc 21500 .3543 9.000 10.0 65 22 5
Fresa de vástago con radio de cantos - Página 193
Fresadora de radios - Página 194 21530 .3750 3/8" 9.525 3/8" 2-1/2" 7/8" 5
21560 .3937 10.000 10.0 70 22 5
21620 .4724 12.000 12.0 75 32 5
6 35
35
21660 .5000 1/2" 12.700 1/2" 3" 1-1/4" 5
6
Fraises carbure submicrograin - coupe au centre 21710 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" 5
Haute performance outil pour durs material 21740 .6299 16.000 16.0 88 32 5
Recommandee pour utilisation dans aciers a moules a haute durete, 21800 .7500 3/4" 19.050 20.0 100 1-1/2" 5 5 5
3/4"
4"
MATERIAL HARDNESS (Rc) MATERIAL HARDNESS (Rc) Fresa sub-micrograno metallo duro - taglio al centro 21920 1.000 1" 25.400 1" 4" 1-1/2" 5
inconel, et aciers a outillage au dessus de 45HRC
.7874
21830
20.000
38
Rayon de Coin - Page 193
Hemispherique - Page 194
25.000
25.0
100
38
.9843
21890
Alte prestazioni da impiegare su materiali temprati
Raccomandata per lavorazioni su acciai temprati, inconel e acciai per
utensili superiori a 45 Hrc
Toriche - Pagina 193
Sferiche - Pagina 194
高效超细晶粒整体硬质合金立铣刀 - 中心切削
适合加工洛氏硬度高的材质
推荐加工淬硬模具、铬镍铁耐热耐蚀合金和洛氏硬度45以上的工具钢
0 0 圆弧角 - 193页
球头 - 194页
6
6
192 www.garrtool.com ® ® ® † Metric equivalents are for reference only
