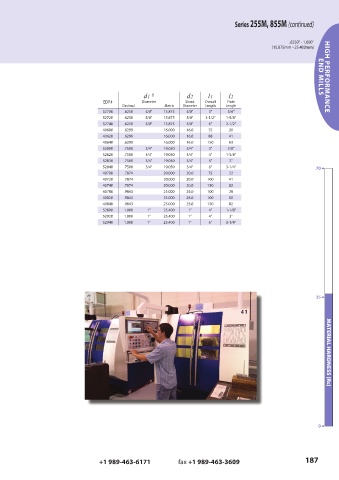

Page 187 - GARR_TOOL(CATALOG_INT)

Series 255M, 855M (continued)

.6250" - 1.000"
(15.875mm - 25.400mm)

d1 † d2 l1 l2 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute
Decimal Metric Diameter Length Length
52700 .6250 5/8" 15.875 5/8" 3" 3/4"
52720 .6250 5/8" 15.875 5/8" 3-1/2" 1-5/8"
52740 .6250 5/8" 15.875 5/8" 6" 2-1/2"
40600 .6299 16.000 16.0 75 20
40620 .6299 16.000 16.0 88 41
40640 .6299 16.000 16.0 150 63
52800 .7500 3/4" 19.050 3/4" 3" 7/8"
52820 .7500 3/4" 19.050 3/4" 4" 1-5/8"
52830 .7500 3/4" 19.050 3/4" 5" 2"
52840 .7500 3/4" 19.050 3/4" 6" 3-1/4" 70 6
40700 .7874 20.000 20.0 75 22
40720 .7874 20.000 20.0 100 41
40740 .7874 20.000 20.0 150 82
40780 .9843 25.000 25.0 100 28
40820 .9843 25.000 25.0 100 50
40840 .9843 25.000 25.0 150 82
52890 1.000 1" 25.400 1" 4" 1-1/8"
52920 1.000 1" 25.400 1" 4" 2"
52940 1.000 1" 25.400 1" 6" 3-1/4“

35 6 MATERIAL HARDNESS (Rc)

0 6
