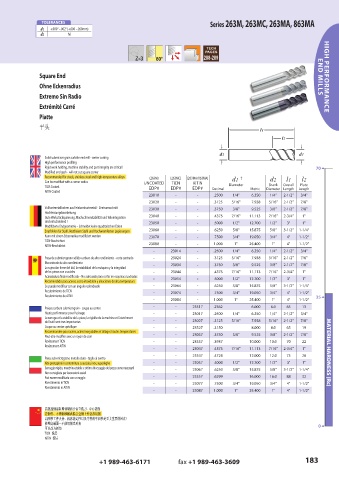

Page 183 - GARR_TOOL(CATALOG_INT)

TOLERANCES Series 263M, 263MC, 263MA, 863MA
d1 +.000" –.002" (+.000 –.050mm)
d2 h6

288-289

Square End END MILLS HIGH PERFORMANCE
Ohne Eckenradius
Extremo Sin Radio
Extrémité Carré

Piatte
平头
平头

Solid submicron grain carbide end mill - center cutting
High performance profiling
Rigid work holding, machine stability and part integrity are critical! 70 6
70
6
Modified end gash - will not cut square corner
Recommended for steels, stainless steel and high-temperature alloys (263M) (263MC) (263MA/863MA) d1 † d2 l1 l2
Can be modified with a corner radius UNCOATED TiCN AlTiN
Overall
Shank
Flute
TICN Coated EDP# EDP# EDP# Decimal Diameter Metric Diameter Length Length
AlTiN Coated
23010 - - .2500 1/4" 6.350 1/4" 2-1/2" 3/4"
23020 - - .3125 5/16" 7.938 5/16" 2-1/2" 7/8"
Vollhartmetallbohrer aus Feinkornhartmetall - Zentrumsschnitt 23030 - - .3750 3/8" 9.525 3/8" 2-1/2" 7/8"
Hochleistungsbearbeitung
Gute Werkstückspannung, Machschinenstabilität und Teileintegration 23040 - - .4375 7/16" 11.113 7/16" 2-3/4" 1"
sind entscheidend ! 23050 - - .5000 1/2" 12.700 1/2" 3" 1"
Modifizierte Endgeometrie – Schneidet keine quadratischen Ecken
Empfohlen für Stahl, Rostfreiem Stahl und Hochwarmfesten Legierungen 23060 - - .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4"
Kann mit einem Eckenradius modifiziert werden 23070 - - .7500 3/4" 19.050 3/4" 4" 1-1/2"
TiCN-Beschichtet
AlTiN-Beschichtet 23080 - - 1.000 1" 25.400 1" 4" 1-1/2"
- 23014 - .2500 1/4" 6.350 1/4" 2-1/2" 3/4"
Fresa de submicrograno sólido carburo de alto rendimiento - corte centrado - 23024 - .3125 5/16" 7.938 5/16" 2-1/2" 7/8"
Mecanizado de alto rendimiento - 23034 - .3750 3/8" 9.525 3/8" 2-1/2" 7/8"
La sujección firme del útil, la estabilidad de la máquina y la integridad
de las piezas son cruciales - 23044 - .4375 7/16" 11.113 7/16" 2-3/4" 1"
Acanaladura final modificada – No adecuada para cortar en esquinas cuadradas - 23054 - .5000 1/2" 12.700 1/2" 3" 1"
Recomendado para aceros, acero inoxidable y aleaciones de alta temperatura
Se puede modificar con un ángulo redondeado - 23064 - .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4"
Recubrimiento de TiCN - 23074 - .7500 3/4" 19.050 3/4" 4" 1-1/2"
Recubrimiento de AlTiN 35 6
35
- 23084 - 1.000 1" 25.400 1" 4" 1-1/2"
6
Fraises carbure submicrograin - coupe au centre - - 23517 .2362 6.000 6.0 65 13
Haute performance pour l’usinage - - 23017 .2500 1/4" 6.350 1/4" 2-1/2" 3/4"
Le serrage et la stabilite de la piece, la rigidite de la machine et l’atatchment
de l’outil sont tres importantes - - 23027 .3125 5/16" 7.938 5/16" 2-1/2" 7/8"
Coupe au centre spécifique - - 23527 .3150 8.000 8.0 65 19
Recommandee pour aciers, aciers inoxydables et alliages hautes temperatures
Peut etre modifier avec un rayon de coin - - 23037 .3750 3/8" 9.525 3/8" 2-1/2" 7/8"
Revêtement TiCN - - 23537 .3937 10.000 10.0 70 22
Revêtement AlTiN
- - 23047 .4375 7/16" 11.113 7/16" 2-3/4" 1"
- - 23547 .4724 12.000 12.0 75 26 MATERIAL HARDNESS (Rc)
Fresa sub-micrograno metallo duro - taglio al centro
Alte prestazioni in contornitura su acciaio, inox, superleghe - - 23057 .5000 1/2" 12.700 1/2" 3" 1"
Serraggio rigido, macchina stabile e ottimo bloccaggio del pezzo sono necessari! - - 23067 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4"
Non consigliata per lavorazioni assiali
Può essere modificata con un raggio - - 23557 .6299 16.000 16.0 88 32
Rivestimento in TiCN - - 23077 .7500 3/4" 19.050 3/4" 4" 1-1/2"
Rivestimento in AlTiN
MATERIAL HARDNESS (Rc)
- - 23087 1.000 1" 25.400 1" 4" 1-1/2"
高效超细晶粒整体硬质合金立铣刀 - 中心切削
在钢件、不锈钢和耐高温合金钢上作仿形切削
高刚性工件夹持、机床稳定性以及零件的牢固性是至关重要的因素！
修整底端面—不能切削直形角 0 0
可以改为圆角 6
6
TiCN 涂层
AlTiN 涂层
+1 989-463-6171 fax +1 989-463-3609 183
