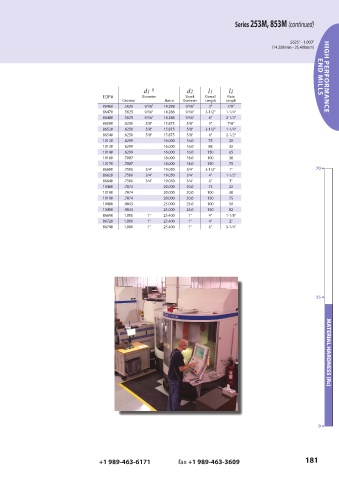

Page 181 - GARR_TOOL(CATALOG_INT)

Series 253M, 853M (continued)

.5625" - 1.000"
(14.288mm - 25.400mm)

d1 † d2 l1 l2 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute
Decimal Metric Diameter Length Length
86460 .5625 9/16" 14.288 9/16" 3" 7/8"
86470 .5625 9/16" 14.288 9/16" 3-1/2" 1-1/4"
86480 .5625 9/16" 14.288 9/16" 6" 2-1/2"
86500 .6250 5/8" 15.875 5/8" 3" 7/8"
86520 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4"
86540 .6250 5/8" 15.875 5/8" 6" 2-1/2"
10120 .6299 16.000 16.0 75 20
10130 .6299 16.000 16.0 88 32
10140 .6299 16.000 16.0 150 65
10160 .7087 18.000 18.0 100 38
10170 .7087 18.000 18.0 150 75
86600 .7500 3/4" 19.050 3/4" 3-1/2" 1" 70 6
86620 .7500 3/4" 19.050 3/4" 4" 1-1/2"
86640 .7500 3/4" 19.050 3/4" 6" 3"
10460 .7874 20.000 20.0 75 22
10180 .7874 20.000 20.0 100 38
10190 .7874 20.000 20.0 150 75
10480 .9843 25.000 25.0 100 50
10490 .9843 25.000 25.0 150 82
86690 1.000 1" 25.400 1" 4" 1-1/8"
86720 1.000 1" 25.400 1" 4" 2"
86740 1.000 1" 25.400 1" 6" 3-1/4“

35 6 MATERIAL HARDNESS (Rc)

0 6

+1 989-463-6171 fax +1 989-463-3609 181
