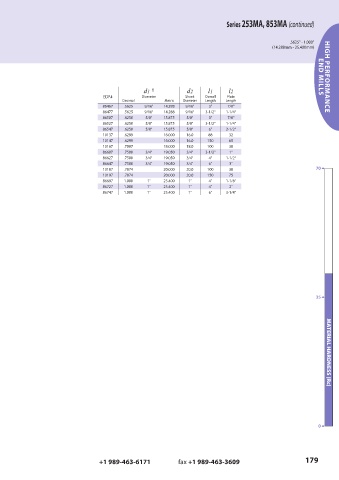

Page 179 - GARR_TOOL(CATALOG_INT)
P. 179
Series 253MA, 853MA (continued)
.5625" - 1.000"
(14.288mm - 25.400mm)
d1 † d2 l1 l2 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute
Decimal Metric Diameter Length Length
86467 .5625 9/16" 14.288 9/16" 3" 7/8"
86477 .5625 9/16" 14.288 9/16" 3-1/2" 1-1/4"
86507 .6250 5/8" 15.875 5/8" 3" 7/8"
86527 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4"
86547 .6250 5/8" 15.875 5/8" 6" 2-1/2"
10137 .6299 16.000 16.0 88 32
10147 .6299 16.000 16.0 150 65
10167 .7087 18.000 18.0 100 38
86607 .7500 3/4" 19.050 3/4" 3-1/2" 1"
86627 .7500 3/4" 19.050 3/4" 4" 1-1/2"
86647 .7500 3/4" 19.050 3/4" 6" 3"
10187 .7874 20.000 20.0 100 38 70 6
10197 .7874 20.000 20.0 150 75
86697 1.000 1" 25.400 1" 4" 1-1/8"
86727 1.000 1" 25.400 1" 4" 2"
86747 1.000 1" 25.400 1" 6" 3-1/4“
35 6 MATERIAL HARDNESS (Rc)
0 6
