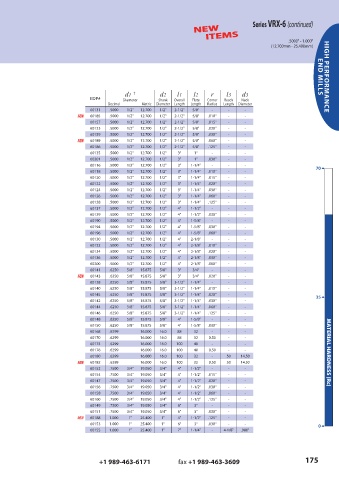

Page 175 - GARR_TOOL(CATALOG_INT)

NEW Series VRX-6 (continued)
NEW
ITEMS
ITEMS
.5000" - 1.000"
(12.700mm - 25.400mm)

d1 † d2 l1 l2 r l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Corner Reach Neck
Decimal Metric Diameter Length Length Radius Length Diameter
60131 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" - - -
NEW 60185 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .010" - -
60157 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .015" - -
60133 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .020" - -
60159 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .030" - -
NEW 60189 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .060" - -
60186 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .125" - -
60135 .5000 1/2" 12.700 1/2" 3" 1" - - -
60201 .5000 1/2" 12.700 1/2" 3" 1" .030" - -
60116 .5000 1/2" 12.700 1/2" 3" 1-1/4" - - - 70
70
60118 .5000 1/2" 12.700 1/2" 3" 1-1/4" .010" - - 6
6
60120 .5000 1/2" 12.700 1/2" 3" 1-1/4" .015" - -
60122 .5000 1/2" 12.700 1/2" 3" 1-1/4" .020" - -
60124 .5000 1/2" 12.700 1/2" 3" 1-1/4" .030" - -
60126 .5000 1/2" 12.700 1/2" 3" 1-1/4" .060" - -
60128 .5000 1/2" 12.700 1/2" 3" 1-1/4" .125" - -
60137 .5000 1/2" 12.700 1/2" 4" 1-1/2" - - -
60139 .5000 1/2" 12.700 1/2" 4" 1-1/2" .030" - -
60190 .5000 1/2" 12.700 1/2" 4" 1-5/8" - - -
60194 .5000 1/2" 12.700 1/2" 4" 1-5/8" .030" - -
60196 .5000 1/2" 12.700 1/2" 4" 1-5/8" .060" - -
60130 .5000 1/2" 12.700 1/2" 4" 2-1/8" - - -
60132 .5000 1/2" 12.700 1/2" 4" 2-1/8" .010" - -
60134 .5000 1/2" 12.700 1/2" 4" 2-1/8" .020" - -
60136 .5000 1/2" 12.700 1/2" 4" 2-1/8" .030" - -
60200 .5000 1/2" 12.700 1/2" 4" 2-1/8" .060" - -
60141 .6250 5/8" 15.875 5/8" 3" 3/4" - - -
NEW 60143 .6250 5/8" 15.875 5/8" 3" 3/4" .020" - -
60138 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" - - -
60140 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .015" - -
60145 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .020" - - 35 6
35
6
60142 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .030" - -
60144 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .060" - -
60146 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .125" - -
60148 .6250 5/8" 15.875 5/8" 4" 1-5/8" - - -
60150 .6250 5/8" 15.875 5/8" 4" 1-5/8" .030" - -
60168 .6299 16.000 16.0 88 32 - - -
60170 .6299 16.000 16.0 88 32 0.50 - -
60174 .6299 16.000 16.0 100 40 - - -
60176 .6299 16.000 16.0 100 40 0.50 - - MATERIAL HARDNESS (Rc)
60180 .6299 16.000 16.0 100 32 - 50 14.50
NEW 60182 .6299 16.000 16.0 100 32 0.50 50 14.50
60152 .7500 3/4" 19.050 3/4" 4" 1-1/2" - - -
60154 .7500 3/4" 19.050 3/4" 4" 1-1/2" .015" - -
60147 .7500 3/4" 19.050 3/4" 4" 1-1/2" .020" - -
60156 .7500 3/4" 19.050 3/4" 4" 1-1/2" .030" - -
MATERIAL HARDNESS (Rc)
60158 .7500 3/4" 19.050 3/4" 4" 1-1/2" .060" - -
60160 .7500 3/4" 19.050 3/4" 4" 1-1/2" .125" - -
60149 .7500 3/4" 19.050 3/4" 6" 3" - - -
60151 .7500 3/4" 19.050 3/4" 6" 3" .030" - -
NEW 60188 1.000 1" 25.400 1" 4" 1-1/2" .125" - -
60153 1.000 1" 25.400 1" 6" 3" .030" - - 0 0 6
6
60155 1.000 1" 25.400 1" 7" 1-1/4" - 4-1/8" .980"
