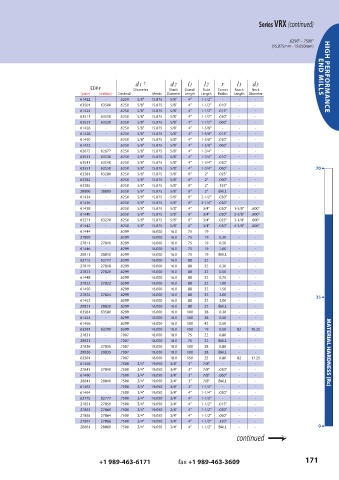

Page 171 - GARR_TOOL(CATALOG_INT)

Series VRX (continued)

.6250" - .7500"
(15.875mm - 19.050mm)

d1 † d2 l1 l2 r l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Corner Reach Neck
(plain) (weldon) Decimal Metric Diameter Length Length Radius Length Diameter
61422 - .6250 5/8" 15.875 5/8" 4" 1-1/2" - - -
63501 63500 .6250 5/8" 15.875 5/8" 4" 1-1/2" .010" - -
61424 - .6250 5/8" 15.875 5/8" 4" 1-1/2" .015" - -
63511 63510 .6250 5/8" 15.875 5/8" 4" 1-1/2" .030" - -
63521 63520 .6250 5/8" 15.875 5/8" 4" 1-1/2" .060" - -
61426 - .6250 5/8" 15.875 5/8" 4" 1-5/8" - - -
61428 - .6250 5/8" 15.875 5/8" 4" 1-5/8" .015" - -
61430 - .6250 5/8" 15.875 5/8" 4" 1-5/8" .030" - -
61432 - .6250 5/8" 15.875 5/8" 4" 1-5/8" .060" - -
62675 62677 .6250 5/8" 15.875 5/8" 4" 1-3/4" - - -
63531 63530 .6250 5/8" 15.875 5/8" 4" 1-3/4" .010" - -
63541 63540 .6250 5/8" 15.875 5/8" 4" 1-3/4" .030" - -
63551 63550 .6250 5/8" 15.875 5/8" 4" 1-3/4" .060" - - 70 6
63281 63280 .6250 5/8" 15.875 5/8" 6" 2" .025" - -
63283 - .6250 5/8" 15.875 5/8" 6" 2" .090" - -
63285 - .6250 5/8" 15.875 5/8" 6" 2" .125" - -
28806 28805 .6250 5/8" 15.875 5/8" 6" 2" BALL - -
61434 - .6250 5/8" 15.875 5/8" 6" 2-1/2" .030" - -
61436 - .6250 5/8" 15.875 5/8" 6" 3-1/4" .030" - -
61438 - .6250 5/8" 15.875 5/8" 4" 3/4" .030" 1-5/8" .600"
61440 - .6250 5/8" 15.875 5/8" 6" 3/4" .030" 2-3/8" .600"
63271 63270 .6250 5/8" 15.875 5/8" 6" 3/4" .025" 3-1/4" .600"
61442 - .6250 5/8" 15.875 5/8" 6" 3/4" .030" 4-1/8" .600"
61444 - .6299 16.000 16.0 75 19 - - -
27809 - .6299 16.000 16.0 75 19 0.30 - -
27811 27810 .6299 16.000 16.0 75 19 0.50 - -
61446 - .6299 16.000 16.0 75 19 1.00 - -
28811 28810 .6299 16.000 16.0 75 19 BALL - -
62715 62717 .6299 16.000 16.0 88 32 - - -
27819 27818 .6299 16.000 16.0 88 32 0.30 - -
27821 27820 .6299 16.000 16.0 88 32 0.50 - -
61448 - .6299 16.000 16.0 88 32 0.75 - -
27823 27822 .6299 16.000 16.0 88 32 1.00 - -
61450 - .6299 16.000 16.0 88 32 1.50 - -
27825 27824 .6299 16.000 16.0 88 32 2.00 - - 35 6
61452 - .6299 16.000 16.0 88 32 3.00 - -
28821 28820 .6299 16.000 16.0 88 32 BALL - -
63581 63580 .6299 16.000 16.0 100 38 0.30 - -
61454 - .6299 16.000 16.0 100 38 0.50 - -
61456 - .6299 16.000 16.0 100 42 0.50 - -
63291 63290 .6299 16.000 16.0 150 19 0.50 82 15.25
27831 - .7087 18.000 18.0 75 22 0.80 - -
28831 - .7087 18.000 18.0 75 22 BALL - -
27836 27835 .7087 18.000 18.0 100 38 0.80 - -
28836 28835 .7087 18.000 18.0 100 38 BALL - - MATERIAL HARDNESS (Rc)
63301 - .7087 18.000 18.0 150 25 0.80 82 17.25
61458 - .7500 3/4" 19.050 3/4" 3" 7/8" - - -
27841 27840 .7500 3/4" 19.050 3/4" 3" 7/8" .030" - -
61460 - .7500 3/4" 19.050 3/4" 3" 7/8" .060" - -
28841 28840 .7500 3/4" 19.050 3/4" 3" 7/8" BALL - -
61462 - .7500 3/4" 19.050 3/4" 4" 1-1/4" - - -
61464 - .7500 3/4" 19.050 3/4" 4" 1-1/4" .030" - -
62775 62777 .7500 3/4" 19.050 3/4" 4" 1-1/2" - - -
27851 27850 .7500 3/4" 19.050 3/4" 4" 1-1/2" .015" - -
27861 27860 .7500 3/4" 19.050 3/4" 4" 1-1/2" .030" - -
27865 27864 .7500 3/4" 19.050 3/4" 4" 1-1/2" .060" - -
27867 27866 .7500 3/4" 19.050 3/4" 4" 1-1/2" .120" - -
28861 28860 .7500 3/4" 19.050 3/4" 4" 1-1/2" BALL - - 0 6
continued ?
