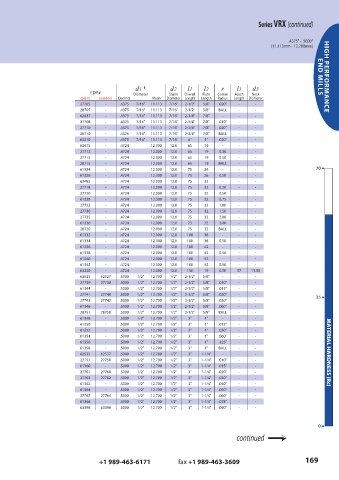

Page 169 - GARR_TOOL(CATALOG_INT)

Series VRX (continued)

.4375" - .5000"
(11.113mm - 12.700mm)

d1 † d2 l1 l2 r l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Corner Reach Neck
(plain) (weldon) Decimal Metric Diameter Length Length Radius Length Diameter
27705 - .4375 7/16" 11.113 7/16" 2-1/2" 5/8" .020" - -
28705 - .4375 7/16" 11.113 7/16" 2-1/2" 5/8" BALL - -
62437 - .4375 7/16" 11.113 7/16" 2-3/4" 7/8" - - -
27708 - .4375 7/16" 11.113 7/16" 2-3/4" 7/8" .010" - -
27710 - .4375 7/16" 11.113 7/16" 2-3/4" 7/8" .020" - -
28710 - .4375 7/16" 11.113 7/16" 2-3/4" 7/8" BALL - -
63210 - .4375 7/16" 11.113 7/16" 6" 1" .020" - -
62475 - .4724 12.000 12.0 65 19 - - -
27712 - .4724 12.000 12.0 65 19 0.30 - -
27715 - .4724 12.000 12.0 65 19 0.50 - -
28715 - .4724 12.000 12.0 65 19 BALL - -
61324 - .4724 12.000 12.0 75 26 - - - 70 6
61326 - .4724 12.000 12.0 75 26 0.50 - -
62485 - .4724 12.000 12.0 75 32 - - -
27718 - .4724 12.000 12.0 75 32 0.30 - -
27720 - .4724 12.000 12.0 75 32 0.50 - -
61328 - .4724 12.000 12.0 75 32 0.75 - -
27722 - .4724 12.000 12.0 75 32 1.00 - -
27730 - .4724 12.000 12.0 75 32 1.50 - -
27735 - .4724 12.000 12.0 75 32 2.00 - -
61330 - .4724 12.000 12.0 75 32 3.00 - -
28720 - .4724 12.000 12.0 75 32 BALL - -
61332 - .4724 12.000 12.0 100 38 - - -
61334 - .4724 12.000 12.0 100 38 0.50 - -
61336 - .4724 12.000 12.0 100 42 - - -
61338 - .4724 12.000 12.0 100 42 0.50 - -
61340 - .4724 12.000 12.0 100 52 - - -
61342 - .4724 12.000 12.0 100 52 0.50 - -
63220 - .4724 12.000 12.0 150 19 0.50 57 11.50
62525 62527 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" - - -
27739 27738 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .010" - -
61344 - .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .015" - -
27741 27740 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .020" - - 35 6
27743 27742 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .030" - -
61346 - .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .060" - -
28751 28750 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" BALL - -
61348 - .5000 1/2" 12.700 1/2" 3" 1" - - -
61350 - .5000 1/2" 12.700 1/2" 3" 1" .015" - -
61352 - .5000 1/2" 12.700 1/2" 3" 1" .030" - -
61354 - .5000 1/2" 12.700 1/2" 3" 1" .060" - -
61356 - .5000 1/2" 12.700 1/2" 3" 1" .125" - -
61358 - .5000 1/2" 12.700 1/2" 3" 1" BALL - -
62535 62537 .5000 1/2" 12.700 1/2" 3" 1-1/4" - - - MATERIAL HARDNESS (Rc)
27751 27750 .5000 1/2" 12.700 1/2" 3" 1-1/4" .010" - -
61360 - .5000 1/2" 12.700 1/2" 3" 1-1/4" .015" - -
27761 27760 .5000 1/2" 12.700 1/2" 3" 1-1/4" .020" - -
27763 27762 .5000 1/2" 12.700 1/2" 3" 1-1/4" .030" - -
61362 - .5000 1/2" 12.700 1/2" 3" 1-1/4" .040" - -
61364 - .5000 1/2" 12.700 1/2" 3" 1-1/4" .050" - -
27767 27764 .5000 1/2" 12.700 1/2" 3" 1-1/4" .060" - -
61366 - .5000 1/2" 12.700 1/2" 3" 1-1/4" .078" - -
63398 63399 .5000 1/2" 12.700 1/2" 3" 1-1/4" .090" - -

0 6
continued ?
