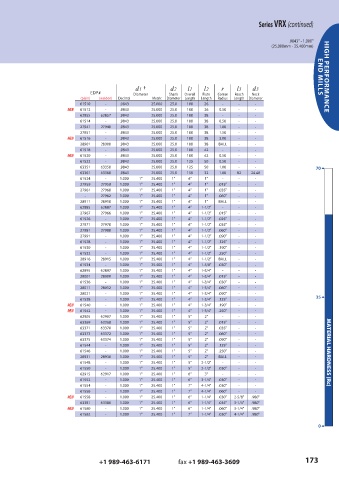

Page 173 - GARR_TOOL(CATALOG_INT)

Series VRX (continued)

.9843" - 1.000"
(25.000mm - 25.400mm)

d1 † d2 l1 l2 r l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Corner Reach Neck
(plain) (weldon) Decimal Metric Diameter Length Length Radius Length Diameter
61510 - .9843 25.000 25.0 100 26 - - -
NEW 61512 - .9843 25.000 25.0 100 26 0.50 - -
62855 62857 .9843 25.000 25.0 100 38 - - -
61514 - .9843 25.000 25.0 100 38 0.50 - -
27941 27940 .9843 25.000 25.0 100 38 1.00 - -
27951 - .9843 25.000 25.0 100 38 1.50 - -
NEW 61516 - .9843 25.000 25.0 100 38 3.00 - -
28901 28900 .9843 25.000 25.0 100 38 BALL - -
61518 - .9843 25.000 25.0 100 42 - - -
NEW 61520 - .9843 25.000 25.0 100 42 0.50 - -
61522 - .9843 25.000 25.0 125 50 0.50 - -
63351 63350 .9843 25.000 25.0 125 50 1.00 - - 70 6
63361 63360 .9843 25.000 25.0 150 32 1.00 82 24.40
61524 - 1.000 1" 25.400 1" 4" 1" - - -
27959 27958 1.000 1" 25.400 1" 4" 1" .015" - -
27961 27960 1.000 1" 25.400 1" 4" 1" .035" - -
- 27962 1.000 1" 25.400 1" 4" 1" .060" - -
28911 28910 1.000 1" 25.400 1" 4" 1" BALL - -
62885 62887 1.000 1" 25.400 1" 4" 1-1/2" - - -
27967 27966 1.000 1" 25.400 1" 4" 1-1/2" .015" - -
61526 - 1.000 1" 25.400 1" 4" 1-1/2" .025" - -
27971 27970 1.000 1" 25.400 1" 4" 1-1/2" .035" - -
27981 27980 1.000 1" 25.400 1" 4" 1-1/2" .060" - -
27991 - 1.000 1" 25.400 1" 4" 1-1/2" .090" - -
61528 - 1.000 1" 25.400 1" 4" 1-1/2" .125" - -
61530 - 1.000 1" 25.400 1" 4" 1-1/2" .190" - -
61532 - 1.000 1" 25.400 1" 4" 1-1/2" .250" - -
28916 28915 1.000 1" 25.400 1" 4" 1-1/2" BALL - -
61534 - 1.000 1" 25.400 1" 4" 1-5/8" .030" - -
62895 62897 1.000 1" 25.400 1" 4" 1-3/4" - - -
28001 28000 1.000 1" 25.400 1" 4" 1-3/4" .015" - -
61536 - 1.000 1" 25.400 1" 4" 1-3/4" .030" - -
28011 28012 1.000 1" 25.400 1" 4" 1-3/4" .060" - -
28021 - 1.000 1" 25.400 1" 4" 1-3/4" .090" - -
61538 - 1.000 1" 25.400 1" 4" 1-3/4" .125" - - 35 6
NEW 61540 - 1.000 1" 25.400 1" 4" 1-3/4" .190" - -
NEW 61542 - 1.000 1" 25.400 1" 4" 1-3/4" .250" - -
62905 62907 1.000 1" 25.400 1" 5" 2" - - -
63369 63368 1.000 1" 25.400 1" 5" 2" .015" - -
63371 63370 1.000 1" 25.400 1" 5" 2" .035" - -
63373 63372 1.000 1" 25.400 1" 5" 2" .060" - -
63375 63374 1.000 1" 25.400 1" 5" 2" .090" - -
61544 - 1.000 1" 25.400 1" 5" 2" .125" - -
61546 - 1.000 1" 25.400 1" 5" 2" .250" - - MATERIAL HARDNESS (Rc)
28931 28930 1.000 1" 25.400 1" 5" 2" BALL - -
61548 - 1.000 1" 25.400 1" 5" 2-1/2" - - -
61550 - 1.000 1" 25.400 1" 5" 2-1/2" .030" - -
62915 62917 1.000 1" 25.400 1" 6" 3" - - -
61552 - 1.000 1" 25.400 1" 6" 3-1/4" .030" - -
61554 - 1.000 1" 25.400 1" 7" 4-1/4" .030" - -
61556 - 1.000 1" 25.400 1" 7" 4-1/4" .060" - -
NEW 61558 - 1.000 1" 25.400 1" 6" 1-1/4" .030" 2-5/8" .980"
63381 63380 1.000 1" 25.400 1" 6" 1-1/4“ .035" 3-1/4" .980"
NEW 61560 - 1.000 1" 25.400 1" 6" 1-1/4" .060" 3-1/4" .980"
61562 - 1.000 1" 25.400 1" 7" 1-1/4" .030" 4-1/4" .980"

0 6
