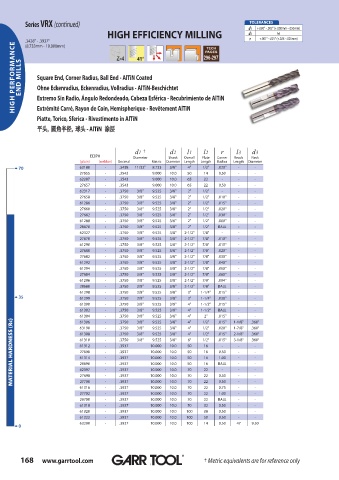

Page 168 - GARR_TOOL(CATALOG_INT)

Series VRX (continued) d1 +.000" –.002" (+.000mm –.050mm)
TOLERANCES
HIGH EFFICIENCY MILLING d2 h6
.3438" - .3937" 41° 296-297 r +.001" –.001" (+.025 –.025mm)
HIGH PERFORMANCE END MILLS Square End, Corner Radius, Ball End - AlTiN Coated
(8.733mm - 10.000mm)

Ohne Eckenradius, Eckenradius, Vollradius - AlTiN-Beschichtet
Extremo Sin Radio, Ángulo Redondeado, Cabeza Esférica - Recubrimiento de AlTiN

Extrémité Carré, Rayon de Coin, Hemispherique - Revêtement AlTiN
Piatte, Torico, Sferica - Rivestimento in AlTiN
-
,
球头
圆角半径
平头, 圆角半径, 球头 - AlTiN 涂层
平头,

涂层
d1 † d2 l1 l2 r l3 d3
EDP# Diameter Shank Overall Flute Corner Reach Neck
(plain) (weldon) Decimal Metric Diameter Length Length Radius Length Diameter
70 63180 - .3438 11/32" 8.733 3/8" 4" 1/2" .020" - -
6
27655 - .3543 9.000 10.0 50 14 0.50 - -
62287 - .3543 9.000 10.0 65 22 - - -
27657 - .3543 9.000 10.0 65 22 0.50 - -
62317 - .3750 3/8" 9.525 3/8" 2" 1/2" - - -
27658 - .3750 3/8" 9.525 3/8" 2" 1/2" .010" - -
61286 - .3750 3/8" 9.525 3/8" 2" 1/2" .015" - -
27660 - .3750 3/8" 9.525 3/8" 2" 1/2" .020" - -
27662 - .3750 3/8" 9.525 3/8" 2" 1/2" .030" - -
61288 - .3750 3/8" 9.525 3/8" 2" 1/2" .060" - -
28670 - .3750 3/8" 9.525 3/8" 2" 1/2" BALL - -
62327 - .3750 3/8" 9.525 3/8" 2-1/2" 7/8" - - -
27670 - .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .010" - -
61290 - .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .015" - -
27680 - .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .020" - -
27682 - .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .030" - -
61292 - .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .040" - -
61294 - .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .050" - -
27684 - .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .060" - -
61296 - .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .094" - -
28680 - .3750 3/8" 9.525 3/8" 2-1/2" 7/8" BALL - -
61298 - .3750 3/8" 9.525 3/8" 3" 1-1/4" .015" - -
35 61299 - .3750 3/8" 9.525 3/8" 3" 1-1/4" .030" - -
6
61300 - .3750 3/8" 9.525 3/8" 4" 1-1/2" .015" - -
61302 - .3750 3/8" 9.525 3/8" 4" 1-1/2" BALL - -
-
-
61304 - - - - .3750 3/8" 9.525 3/8" 4" 1/2" .015" 1-1/8" .360"
2"
MATERIAL HARDNESS (Rc) 61310 - - - - - - .3750 3/8" 10.000 3/8" 50 1/2" .015" 3-1/8" .360"
.3750
3/8"
9.525
.015"
61306
3/8"
4"
9.525
3/8"
1/2"
.3750
.020"
3/8"
1-7/8"
4"
.360"
63190
3/8"
3/8"
.360"
.015"
9.525
61308
2-1/8"
1/2"
.3750
4"
9.525
6"
.3937
61312
-
16
-
10.0
-
16
10.0
-
0.50
.3937
-
27690
50
10.000
16
50
1.00
-
.3937
10.000
-
10.0
61314
-
-
16
BALL
28690
.3937
10.0
50
10.000
62397
10.000
.3937
-
-
-
70
22
10.0
27698
70
10.0
22
27700
10.000
0.50
.3937
61316 - - - .3937 10.000 10.0 70 22 0.30 - - - - - -
10.000
.3937
0.75
70
10.0
22
27702 - .3937 10.000 10.0 70 22 1.00 - -
28700 - .3937 10.000 10.0 70 22 BALL - -
61318 - .3937 10.000 10.0 70 32 0.50 - -
61320 - .3937 10.000 10.0 100 38 0.50 - -
61322 - .3937 10.000 10.0 100 50 0.50 - -
63200 - .3937 10.000 10.0 100 14 0.50 47 9.50
0
6
168 www.garrtool.com ® ® ® † Metric equivalents are for reference only
