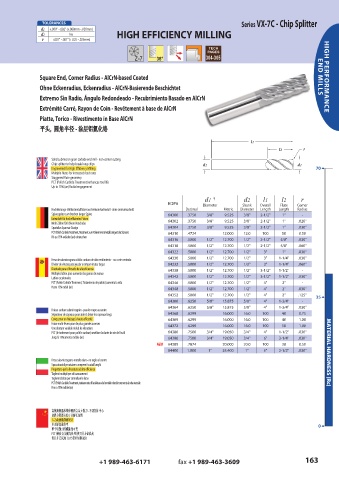

Page 163 - GARR_TOOL(CATALOG_INT)

Series VX-7C - Chip Splitter
TOLERANCES
d1 +.000" –.002" (+.000mm –.050mm)
d2 h6 HIGH EFFICIENCY MILLING
r +.001" –.001" (+.025 –.025mm)

Z7 38° 304-305
=

Square End, Corner Radius - AlCrN-based Coated END MILLS HIGH PERFORMANCE
Ohne Eckenradius, Eckenradius - AlCrN-Basierende Beschichtet
Extremo Sin Radio, Ángulo Redondeado - Recubrimiento Basado en AlCrN

Extrémité Carré, Rayon de Coin - Revêtement à base de AlCrN
Piatte, Torico - Rivestimento in Base AlCrN

平头, 圆角半径 - 涂层铝氮化铬
平头, 圆角半径 - 涂层铝氮化铬

Solid submicron grain carbide end mill - non-center cutting
Chip splitter to help break long chips
Engineered for High Efficiency Milling 70 6
Multiple flutes for increased feed rates
Staggered flute geometry
PCT (Polish Carbide Treatment) enhances tool life
Up to 15% (ae) Radial engagement

d1 † d2 l1 l2 r
EDP# Diameter Shank Overall Flute Corner
Hochleistungs- Vollhartmetallfräser aus Feinkornhartmetall - ohne zentrumsschnitt Decimal Metric Diameter Length Length Radius
Spänespalter zum Brechen langer Späne 64300 .3750 3/8" 9.525 3/8" 2-1/2" 1" -
Entwickelt für hocheffizientes Fräsen 64302 .3750 3/8" 9.525 3/8" 2-1/2" 1" .020"
Mehr Zähne für höhere Vorschube
Spezielles Spannut-Design 64304 .3750 3/8" 9.525 3/8" 2-1/2" 1" .030"
PCT (Polish Carbide Treatment, Treatment zum Polieren Hartmetall) steigert die Stanzeit 64310 .4724 12.000 12.0 100 50 0.50
Bis zu 15% radialen (ae) eintauchen
64316 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .030"
64318 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .060"
64322 .5000 1/2" 12.700 1/2" 3" 1" .030"
Fresa de submicrograno sólido carburo de alto rendimiento - no corte centrado 64330 .5000 1/2" 12.700 1/2" 3" 1-1/4" .030"
Divisor de virutas para ayudar a romper virutas largas 64332 .5000 1/2" 12.700 1/2" 3" 1-1/4" .060"
Diseñado para el fresado de alta eficiencia 64338 .5000 1/2" 12.700 1/2" 3-1/2" 1-1/2" -
Múltiples labios para aumentar las gamas de avance
Labios escalonados 64342 .5000 1/2" 12.700 1/2" 3-1/2" 1-1/2" .030"
PCT (Polish Carbide Treatment, Tratamiento de pulido) aumenta la vida 64346 .5000 1/2" 12.700 1/2" 4" 2" -
Hasta 15% radial (ae) 64348 .5000 1/2" 12.700 1/2" 4" 2" .030"
64352 .5000 1/2" 12.700 1/2" 4" 2" .125" 35 6
64360 .6250 5/8" 15.875 5/8" 4" 1-3/4" -
64364 .6250 5/8" 15.875 5/8" 4" 1-3/4" .030"
Fraises carbure submicrograin - pas de coupe au centre
Séparateur de copeaux pour aider à briser les copeaux longs 64368 .6299 16.000 16.0 100 40 0.75
Conçu pour un fraisage à haute efficacité 64369 .6299 16.000 16.0 100 40 1.00
Fraise multi-lèvres pour de plus grandes avances 64372 .6299 16.000 16.0 100 50 1.00
Une denture variable réduit les vibrations
PCT (le traitement pour polir le carbure) améliore la durée de vie de l’outil 64380 .7500 3/4" 19.050 3/4" 4" 1-1/2" .030"
Jusqu'à 15% amorce radiale (ae) 64386 .7500 3/4" 19.050 3/4" 6" 3-1/4" .030"
NEW 64389 .7874 20.000 20.0 100 38 0.50
64400 1.000 1" 25.400 1" 5" 2-1/2" .030" MATERIAL HARDNESS (Rc)
Fresa sub-micrograno metallo duro - no taglio al centro
Spaccatrucioli per aiutare a rompere i trucioli lunghi
Progettato per la fresatura ad alta efficienza
Taglienti multipli per alti avanzamenti
Taglienti sfalsati per controllare le forze
PCT (Polish Carbide Treatment, trattamento di lucidatura del metallo duro) incrementa la vita utensile
Fino a 15% radiale (ae)

高效超细晶粒整体硬质合金立铣刀 - 不切割在中心
切屑分离器有助于分解长切屑
专为高效铣削而设计
多刃提高进给率 6 0
整个切削刃的螺旋角可变
PCT(硬质合金抛光处理)使刀具寿命提高
设计并已试加工0.15倍径切削宽度
