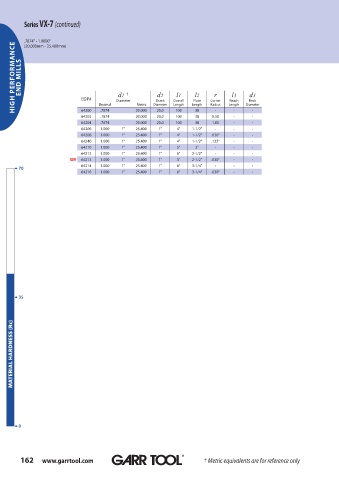

Page 162 - GARR_TOOL(CATALOG_INT)

Series VX-7 (continued)

.7874" - 1.0000"
HIGH PERFORMANCE END MILLS d1 † d2 l1 l2 r l3 d3
(20.000mm - 25.400mm)

EDP#
Shank
Flute
Neck
Reach
Metric
Radius
Length
20.0
.7874
100
-
38
-
-
64200
.7874
20.000
64202 Decimal Diameter 20.000 Diameter Overall Length Corner Length Diameter
-
-
0.50
100
38
20.0
64204 .7874 20.000 20.0 100 38 1.00 - -
64206 1.000 1" 25.400 1" 4" 1-1/2" - - -
64208 1.000 1" 25.400 1" 4" 1-1/2" .030" - -
64240 1.000 1" 25.400 1" 4" 1-1/2" .125" - -
64210 1.000 1" 25.400 1" 5" 2" - - -
64212 1.000 1" 25.400 1" 5" 2-1/2" - - -
NEW 64213 1.000 1" 25.400 1" 5" 2-1/2" .030" - -
64214 1.000 1" 25.400 1" 6" 3-1/4" - - -
70
6
64216 1.000 1" 25.400 1" 6" 3-1/4" .030" - -

35
6

MATERIAL HARDNESS (Rc)

0
6

162 www.garrtool.com ® ® ® † Metric equivalents are for reference only
