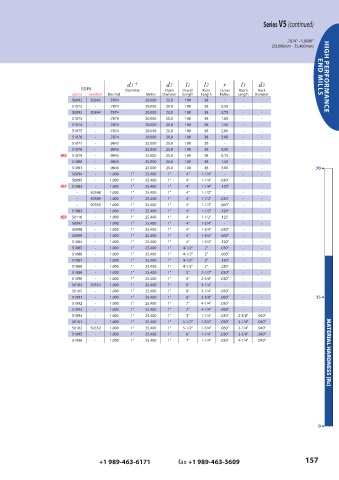

Page 157 - GARR_TOOL(CATALOG_INT)

Series V5 (continued)

.7874" - 1.0000"
(20.000mm - 25.400mm)

d1 † d2 l1 l2 r l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Corner Reach Neck
(plain) (weldon) Decimal Metric Diameter Length Length Radius Length Diameter
50092 50343 .7874 20.000 20.0 100 38 - - -
51072 - .7874 20.000 20.0 100 38 0.50 - -
50093 50344 .7874 20.000 20.0 100 38 0.75 - -
51073 - .7874 20.000 20.0 100 38 1.00 - -
51074 - .7874 20.000 20.0 100 38 1.50 - -
51075 - .7874 20.000 20.0 100 38 2.00 - -
51076 - .7874 20.000 20.0 100 38 3.00 - -
51077 - .9843 25.000 25.0 100 38 - - -
51078 - .9843 25.000 25.0 100 38 0.50 - -
NEW 51079 - .9843 25.000 25.0 100 38 0.75 - -
51080 - .9843 25.000 25.0 100 38 1.50 - -
51081 - .9843 25.000 25.0 100 38 3.00 - - 70 6
50094 - 1.000 1" 25.400 1" 4" 1-1/4" - - -
50095 - 1.000 1" 25.400 1" 4" 1-1/4" .030" - -
NEW 51082 - 1.000 1" 25.400 1" 4" 1-1/4" .120" - -
- 50348 1.000 1" 25.400 1" 4" 1-1/2" - - -
- 50349 1.000 1" 25.400 1" 4" 1-1/2" .030" - -
- 50350 1.000 1" 25.400 1" 4" 1-1/2" .060" - -
51083 - 1.000 1" 25.400 1" 4" 1-1/2" .120" - -
NEW 50116 - 1.000 1" 25.400 1" 4" 1-1/2" .125" - -
50097 - 1.000 1" 25.400 1" 4" 1-3/4" - - -
50098 - 1.000 1" 25.400 1" 4" 1-3/4" .030" - -
50099 - 1.000 1" 25.400 1" 4" 1-3/4" .060" - -
51084 - 1.000 1" 25.400 1" 4" 1-3/4" .120" - -
51085 - 1.000 1" 25.400 1" 4-1/2" 2" .030" - -
51086 - 1.000 1" 25.400 1" 4-1/2" 2" .060" - -
51087 - 1.000 1" 25.400 1" 4-1/2" 2" .120" - -
51088 - 1.000 1" 25.400 1" 4-1/2" 2" .250" - -
51089 - 1.000 1" 25.400 1" 5" 2-1/2" .030" - -
51090 - 1.000 1" 25.400 1" 5" 2-5/8" .030" - -
50104 50354 1.000 1" 25.400 1" 6" 3-1/4" - - -
50105 - 1.000 1" 25.400 1" 6" 3-1/4" .030" - -
51091 - 1.000 1" 25.400 1" 6" 3-3/8" .060" - - 35 6
51092 - 1.000 1" 25.400 1" 7" 4-1/4" .030" - -
51093 - 1.000 1" 25.400 1" 7" 4-1/4" .060" - -
51094 - 1.000 1" 25.400 1" 5" 1-1/4" .030" 2-5/8" .940"
50101 - 1.000 1" 25.400 1" 5-1/2" 1-3/4" .030" 3-1/4" .940"
50102 50352 1.000 1" 25.400 1" 5-1/2" 1-3/4" .060" 3-1/4" .940"
51095 - 1.000 1" 25.400 1" 6" 1-1/4" .030" 3-3/8" .940"
51096 - 1.000 1" 25.400 1" 7" 1-1/4" .030" 4-1/4" .940" MATERIAL HARDNESS (Rc)

6 0
