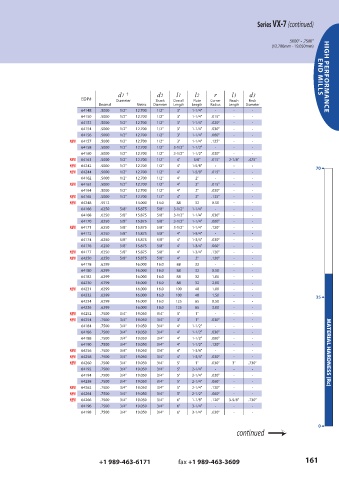

Page 161 - GARR_TOOL(CATALOG_INT)

Series VX-7 (continued)

.5000" - .7500"
(12.700mm - 19.050mm)

d1 † d2 l1 l2 r l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Corner Reach Neck
Decimal Metric Diameter Length Length Radius Length Diameter
64148 .5000 1/2" 12.700 1/2" 3" 1-1/4" - - -
64150 .5000 1/2" 12.700 1/2" 3" 1-1/4" .015" - -
64152 .5000 1/2" 12.700 1/2" 3" 1-1/4" .020" - -
64154 .5000 1/2" 12.700 1/2" 3" 1-1/4" .030" - -
64156 .5000 1/2" 12.700 1/2" 3" 1-1/4" .060" - -
NEW 64157 .5000 1/2" 12.700 1/2" 3" 1-1/4" .125" - -
64158 .5000 1/2" 12.700 1/2" 3-1/2" 1-1/2" - - -
64160 .5000 1/2" 12.700 1/2" 3-1/2" 1-1/2" .030" - -
NEW 64161 .5000 1/2" 12.700 1/2" 4" 5/8" .015" 2-1/8" .475"
NEW 64242 .5000 1/2" 12.700 1/2" 4" 1-5/8" - - - 70 6
NEW 64244 .5000 1/2" 12.700 1/2" 4" 1-5/8" .015" - -
64162 .5000 1/2" 12.700 1/2" 4" 2" - - -
NEW 64163 .5000 1/2" 12.700 1/2" 4" 2" .015" - -
64164 .5000 1/2" 12.700 1/2" 4" 2" .030" - -
NEW 64165 .5000 1/2" 12.700 1/2" 4" 2" .125" - -
NEW 64248 .5512 14.000 14.0 88 32 0.50 - -
64166 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" - - -
64168 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .030" - -
64170 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .060" - -
NEW 64171 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .120" - -
64172 .6250 5/8" 15.875 5/8" 4" 1-3/4" - - -
64174 .6250 5/8" 15.875 5/8" 4" 1-3/4" .030" - -
64176 .6250 5/8" 15.875 5/8" 4" 1-3/4" .060" - -
NEW 64177 .6250 5/8" 15.875 5/8" 4" 1-3/4" .120" - -
NEW 64250 .6250 5/8" 15.875 5/8" 4" 2" .120" - -
64178 .6299 16.000 16.0 88 32 - - -
64180 .6299 16.000 16.0 88 32 0.50 - -
64182 .6299 16.000 16.0 88 32 1.00 - -
64230 .6299 16.000 16.0 88 32 2.00 - -
NEW 64231 .6299 16.000 16.0 100 40 1.00 - -
64232 .6299 16.000 16.0 100 40 1.50 - - 35 6
64234 .6299 16.000 16.0 125 65 0.50 - -
64236 .6299 16.000 16.0 125 65 3.00 - -
NEW 64252 .7500 3/4" 19.050 3/4" 3" 1" - - -
NEW 64254 .7500 3/4" 19.050 3/4" 3" 1" .030" - -
64184 .7500 3/4" 19.050 3/4" 4" 1-1/2" - - -
64186 .7500 3/4" 19.050 3/4" 4" 1-1/2" .030" - -
64188 .7500 3/4" 19.050 3/4" 4" 1-1/2" .060" - -
64190 .7500 3/4" 19.050 3/4" 4" 1-1/2" .120" - -
NEW 64256 .7500 3/4" 19.050 3/4" 4" 1-3/4" - - - MATERIAL HARDNESS (Rc)
NEW 64258 .7500 3/4" 19.050 3/4" 4" 1-3/4" .030" - -
NEW 64260 .7500 3/4" 19.050 3/4" 5" 1" .030" 3" .730"
64192 .7500 3/4" 19.050 3/4" 5" 2-1/4" - - -
64194 .7500 3/4" 19.050 3/4" 5" 2-1/4" .030" - -
64238 .7500 3/4" 19.050 3/4" 5" 2-1/4" .060" - -
NEW 64262 .7500 3/4" 19.050 3/4" 5" 2-1/4" .120" - -
NEW 64264 .7500 3/4" 19.050 3/4" 5" 2-1/2" .060" - -
NEW 64266 .7500 3/4" 19.050 3/4" 6" 1-1/8" .120" 3-5/8" .730"
64196 .7500 3/4" 19.050 3/4" 6" 3-1/4" - - -
64198 .7500 3/4" 19.050 3/4" 6" 3-1/4" .030" - -

6 0
continued ?
