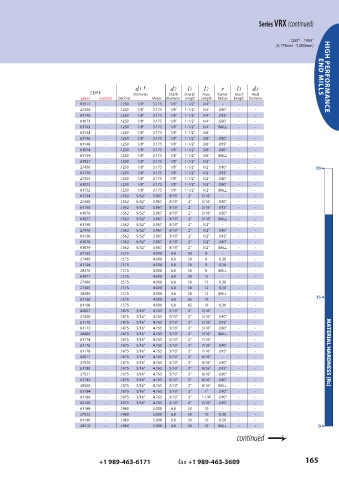

Page 165 - GARR_TOOL(CATALOG_INT)

Series VRX (continued)

.1250" - .1969"
(3.175mm - 5.000mm)

d1 † d2 l1 l2 r l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Corner Reach Neck
(plain) (weldon) Decimal Metric Diameter Length Length Radius Length Diameter
61917 - .1250 1/8" 3.175 1/8" 1-1/2" 1/4" - - -
27440 - .1250 1/8" 3.175 1/8" 1-1/2" 1/4" .010" - -
61140 - .1250 1/8" 3.175 1/8" 1-1/2" 1/4" .015" - -
61073 .1250 1/8" 3.175 1/8" 1-1/2" 1/4" .030" - -
61142 - .1250 1/8" 3.175 1/8" 1-1/2" 1/4" BALL - -
61144 - .1250 1/8" 3.175 1/8" 1-1/2" 3/8" - - -
61146 - .1250 1/8" 3.175 1/8" 1-1/2" 3/8" .010" - -
61148 - .1250 1/8" 3.175 1/8" 1-1/2" 3/8" .015" - -
61074 .1250 1/8" 3.175 1/8" 1-1/2" 3/8" .030" - -
61149 - .1250 1/8" 3.175 1/8" 1-1/2" 3/8" BALL - -
61927 - .1250 1/8" 3.175 1/8" 1-1/2" 1/2" - - -
27450 - .1250 1/8" 3.175 1/8" 1-1/2" 1/2" .010" - - 70 6
61150 - .1250 1/8" 3.175 1/8" 1-1/2" 1/2" .015" - -
27455 - .1250 1/8" 3.175 1/8" 1-1/2" 1/2" .020" - -
61075 .1250 1/8" 3.175 1/8" 1-1/2" 1/2" .030" - -
61152 - .1250 1/8" 3.175 1/8" 1-1/2" 1/2" BALL - -
61154 - .1562 5/32" 3.967 3/16" 2" 5/16" - - -
27460 - .1562 5/32" 3.967 3/16" 2" 5/16" .010" - -
61156 - .1562 5/32" 3.967 3/16" 2" 5/16" .015" - -
61076 .1562 5/32" 3.967 3/16" 2" 5/16" .030" - -
61077 .1562 5/32" 3.967 3/16" 2" 5/16" BALL - -
61158 - .1562 5/32" 3.967 3/16" 2" 1/2" - - -
27470 - .1562 5/32" 3.967 3/16" 2" 1/2" .010" - -
61160 - .1562 5/32" 3.967 3/16" 2" 1/2" .015" - -
61078 .1562 5/32" 3.967 3/16" 2" 1/2" .030" - -
61079 .1562 5/32" 3.967 3/16" 2" 1/2" BALL - -
61162 - .1575 4.000 6.0 50 8 - - -
27480 - .1575 4.000 6.0 50 8 0.30 - -
61164 - .1575 4.000 6.0 50 8 0.50 - -
28470 - .1575 4.000 6.0 50 8 BALL - -
61977 - .1575 4.000 6.0 50 12 - - -
27490 - .1575 4.000 6.0 50 12 0.30 - -
27495 - .1575 4.000 6.0 50 12 0.50 - -
28480 - .1575 4.000 6.0 50 12 BALL - -
61166 - .1575 4.000 6.0 65 19 - - - 35 6
61168 - .1575 4.000 6.0 65 19 0.30 - -
62007 - .1875 3/16" 4.763 3/16" 2" 5/16" - - -
27500 - .1875 3/16" 4.763 3/16" 2" 5/16" .010" - -
61170 - .1875 3/16" 4.763 3/16" 2" 5/16" .015" - -
61172 - .1875 3/16" 4.763 3/16" 2" 5/16" .020" - -
28490 - .1875 3/16" 4.763 3/16" 2" 5/16" BALL - -
61174 - .1875 3/16" 4.763 3/16" 2" 7/16" - - -
61176 - .1875 3/16" 4.763 3/16" 2" 7/16" .010" - -
61178 - .1875 3/16" 4.763 3/16" 2" 7/16" .015" - - MATERIAL HARDNESS (Rc)
62017 - .1875 3/16" 4.763 3/16" 2" 9/16" - - -
27520 - .1875 3/16" 4.763 3/16" 2" 9/16" .010" - -
61180 - .1875 3/16" 4.763 3/16" 2" 9/16" .015" - -
27521 - .1875 3/16" 4.763 3/16" 2" 9/16" .020" - -
61182 - .1875 3/16" 4.763 3/16" 2" 9/16" .030" - -
28500 - .1875 3/16" 4.763 3/16" 2" 9/16" BALL - -
61184 - .1875 3/16" 4.763 3/16" 3" 1" .010" - -
61186 - .1875 3/16" 4.763 3/16" 3" 1-1/4" .010" - -
63100 - .1875 3/16" 4.763 3/16" 4" 5/16" .010" - -
61188 - .1969 5.000 6.0 50 10 - - -
27522 - .1969 5.000 6.0 50 10 0.30 - -
61190 - .1969 5.000 6.0 50 10 0.50 - -
28510 - .1969 5.000 6.0 50 10 BALL - - 0 6
continued ?
