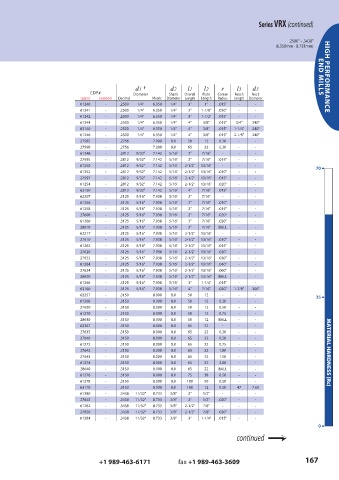

Page 167 - GARR_TOOL(CATALOG_INT)
P. 167
Series VRX (continued)
.2500" - .3438"
(6.350mm - 8.733mm)
d1 † d2 l1 l2 r l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Corner Reach Neck
(plain) (weldon) Decimal Metric Diameter Length Length Radius Length Diameter
61240 - .2500 1/4" 6.350 1/4" 3" 1" .015" - -
61241 - .2500 1/4" 6.350 1/4" 3" 1-1/8" .030" - -
61242 - .2500 1/4" 6.350 1/4" 3" 1-1/2" .015" - -
61244 - .2500 1/4" 6.350 1/4" 4" 3/8" .015" 3/4" .240"
63140 - .2500 1/4" 6.350 1/4" 4" 3/8" .015" 1-1/4" .240"
61246 - .2500 1/4" 6.350 1/4" 4" 3/8" .015" 2-1/8" .240"
27585 - .2756 7.000 8.0 50 12 0.30 - -
27590 - .2756 7.000 8.0 65 22 0.30 - -
61248 - .2812 9/32" 7.142 5/16" 2" 7/16" - - -
27595 - .2812 9/32" 7.142 5/16" 2" 7/16" .015" - -
61250 - .2812 9/32" 7.142 5/16" 2-1/2" 13/16" - - - 70 6
61252 - .2812 9/32" 7.142 5/16" 2-1/2" 13/16" .010" - -
27597 - .2812 9/32" 7.142 5/16" 2-1/2" 13/16" .015" - -
61254 - .2812 9/32" 7.142 5/16" 2-1/2" 13/16" .020" - -
63150 - .2812 9/32" 7.142 5/16" 4" 7/16" .015" - -
62207 - .3125 5/16" 7.938 5/16" 2" 7/16" - - -
61256 - .3125 5/16" 7.938 5/16" 2" 7/16" .010" - -
61258 - .3125 5/16" 7.938 5/16" 2" 7/16" .015" - -
27600 - .3125 5/16" 7.938 5/16" 2" 7/16" .020" - -
61260 - .3125 5/16" 7.938 5/16" 2" 7/16" .030" - -
28610 - .3125 5/16" 7.938 5/16" 2" 7/16" BALL - -
62217 - .3125 5/16" 7.938 5/16" 2-1/2" 13/16" - - -
27610 - .3125 5/16" 7.938 5/16" 2-1/2" 13/16" .010" - -
61262 - .3125 5/16" 7.938 5/16" 2-1/2" 13/16" .015" - -
27620 - .3125 5/16" 7.938 5/16" 2-1/2" 13/16" .020" - -
27622 - .3125 5/16" 7.938 5/16" 2-1/2" 13/16" .030" - -
61264 - .3125 5/16" 7.938 5/16" 2-1/2" 13/16" .040" - -
27624 - .3125 5/16" 7.938 5/16" 2-1/2" 13/16" .060" - -
28620 - .3125 5/16" 7.938 5/16" 2-1/2" 13/16" BALL - -
61266 - .3125 5/16" 7.938 5/16" 3" 1-1/4" .015" - -
63160 - .3125 5/16" 7.938 5/16" 4" 7/16" .020" 1-7/8" .300"
62257 - .3150 8.000 8.0 50 12 - - - 35 6
61268 - .3150 8.000 8.0 50 12 0.30 - -
27630 - .3150 8.000 8.0 50 12 0.50 - -
61270 - .3150 8.000 8.0 50 12 0.75 - -
28630 - .3150 8.000 8.0 50 12 BALL - -
62267 - .3150 8.000 8.0 65 22 - - -
27635 - .3150 8.000 8.0 65 22 0.30 - -
27640 - .3150 8.000 8.0 65 22 0.50 - -
61272 - .3150 8.000 8.0 65 22 0.75 - -
27642 - .3150 8.000 8.0 65 22 1.00 - - MATERIAL HARDNESS (Rc)
27643 - .3150 8.000 8.0 65 22 1.50 - -
61274 - .3150 8.000 8.0 65 22 2.00 - -
28640 - .3150 8.000 8.0 65 22 BALL - -
61276 - .3150 8.000 8.0 75 38 0.50 - -
61278 - .3150 8.000 8.0 100 50 0.50 - -
63170 - .3150 8.000 8.0 100 12 0.50 47 7.60
61280 - .3438 11/32" 8.733 3/8" 2" 1/2" - - -
27645 - .3438 11/32" 8.733 3/8" 2" 1/2" .020" - -
61282 - .3438 11/32" 8.733 3/8" 2-1/2" 7/8" - - -
27650 - .3438 11/32" 8.733 3/8" 2-1/2" 7/8" .020" - -
61284 - .3438 11/32" 8.733 3/8" 3" 1-1/4" .015" - -
0 6
continued ?
