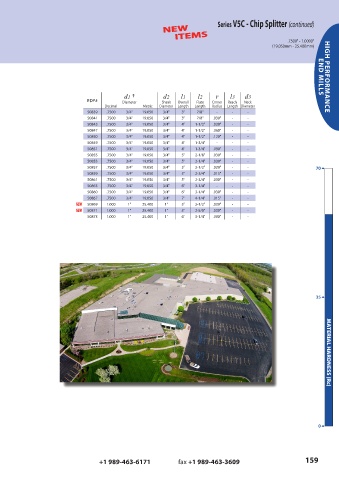

Page 159 - GARR_TOOL(CATALOG_INT)

NEW Series V5C - Chip Splitter (continued)
NEW
ITEMS
ITEMS
.7500" - 1.0000"
(19.050mm - 25.400mm)

d1 † d2 l1 l2 r l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Corner Reach Neck
Decimal Metric Diameter Length Length Radius Length Diameter
50839 .7500 3/4" 19.050 3/4" 3" 7/8" - - -
50841 .7500 3/4" 19.050 3/4" 3" 7/8" .030" - -
50843 .7500 3/4" 19.050 3/4" 4" 1-1/2" .030" - -
50847 .7500 3/4" 19.050 3/4" 4" 1-1/2" .060" - -
50850 .7500 3/4" 19.050 3/4" 4" 1-1/2" .120" - -
50849 .7500 3/4" 19.050 3/4" 4" 1-3/4" - - -
50851 .7500 3/4" 19.050 3/4" 4" 1-3/4" .030" - -
50855 .7500 3/4" 19.050 3/4" 5" 2-1/8" .030" - -
50853 .7500 3/4" 19.050 3/4" 5" 2-1/4" .030" - -
50857 .7500 3/4" 19.050 3/4" 5" 2-1/2" .030" - - 70 6
50859 .7500 3/4" 19.050 3/4" 5" 2-3/4" .015" - -
50861 .7500 3/4" 19.050 3/4" 5" 2-3/4" .030" - -
50863 .7500 3/4" 19.050 3/4" 6" 3-1/4" - - -
50860 .7500 3/4" 19.050 3/4" 6" 3-1/4" .030" - -
50867 .7500 3/4" 19.050 3/4" 7" 4-1/4" .015" - -
NEW 50869 1.000 1" 25.400 1" 5" 2-1/2" .030" - -
NEW 50871 1.000 1" 25.400 1" 5" 2-5/8" .030" - -
50873 1.000 1" 25.400 1" 6" 3-1/4" .030" - -

35 6 MATERIAL HARDNESS (Rc)

6 0

+1 989-463-6171 fax +1 989-463-3609 159
