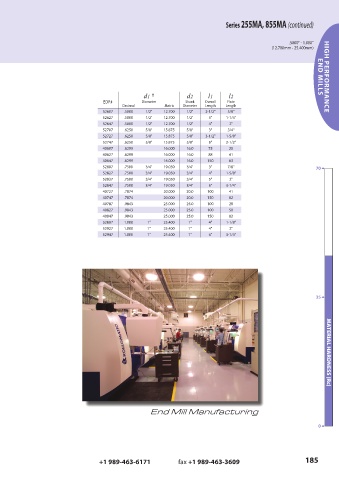

Series 255MA, 855MA (continued)

.5000" - 1.000"
(12.700mm - 25.400mm)

d1 † d2 l1 l2 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute
Decimal Metric Diameter Length Length
52607 .5000 1/2" 12.700 1/2" 2-1/2" 5/8"
52627 .5000 1/2" 12.700 1/2" 3" 1-1/4"
52647 .5000 1/2" 12.700 1/2" 4" 2"
52707 .6250 5/8" 15.875 5/8" 3" 3/4"
52727 .6250 5/8" 15.875 5/8" 3-1/2" 1-5/8"
52747 .6250 5/8" 15.875 5/8" 6" 2-1/2"
40607 .6299 16.000 16.0 75 20
40627 .6299 16.000 16.0 88 41
40647 .6299 16.000 16.0 150 63
52807 .7500 3/4" 19.050 3/4" 3" 7/8" 70 6
52827 .7500 3/4" 19.050 3/4" 4" 1-5/8"
52837 .7500 3/4" 19.050 3/4" 5" 2"
52847 .7500 3/4" 19.050 3/4" 6" 3-1/4"
40727 .7874 20.000 20.0 100 41
40747 .7874 20.000 20.0 150 82
40787 .9843 25.000 25.0 100 28
40827 .9843 25.000 25.0 100 50
40847 .9843 25.000 25.0 150 82
52897 1.000 1" 25.400 1" 4" 1-1/8"
52927 1.000 1" 25.400 1" 4" 2"
52947 1.000 1" 25.400 1" 6" 3-1/4“

35 6 MATERIAL HARDNESS (Rc)

End Mill Manufacturing

0 6
