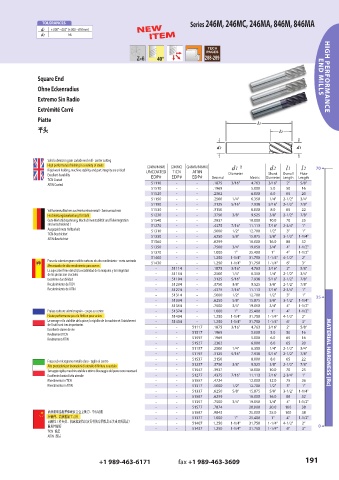

Page 191 - GARR_TOOL(CATALOG_INT)

TOLERANCES Series 246M, 246MC, 246MA, 846M, 846MA
NEW
d1 +.000" –.002" (+.000 –.050mm) NEW
ITEM
d2 h6 ITEM

288-289

Square End END MILLS HIGH PERFORMANCE
Ohne Eckenradius

Extremo Sin Radio
Extrémité Carré
Piatte

平头
平头

Solid submicron grain carbide end mill - center cutting
High performance finishing in a variety of steels (246M/846M) (246MC) (246MA/846MA) d1 † d2 l1 l2
Rigid work holding, machine stability and part integrity are critical! UNCOATED TiCN AlTiN 70 6
Excellent durability EDP# EDP# EDP# Diameter Shank Overall Flute
TiCN Coated Decimal Metric Diameter Length Length
AlTiN Coated 51110 - - .1875 3/16" 4.763 3/16" 2" 5/8"
51510 - - .1969 5.000 5.0 50 16
51520 - - .2362 6.000 6.0 65 20
51150 - - .2500 1/4" 6.350 1/4" 2-1/2" 3/4"
51190 - - .3125 5/16" 7.938 5/16" 2-1/2" 7/8"
Vollhartmetallbohrer aus Feinkornhartmetall - Zentrumsschnitt 51530 - - .3150 8.000 8.0 65 22
Hochleistungsbearbeitung für Stahl 51230 - - .3750 3/8" 9.525 3/8" 2-1/2" 7/8"
Gute Werkstückspannung, Machschinenstabilität und Teileintegration 51540 - - .3937 10.000 10.0 70 25
sind entscheidend ! 51270 - - .4375 7/16" 11.113 7/16" 2-3/4" 1"
Ausgezeichnete Haltbarkeit 51310 - - .5000 1/2" 12.700 1/2" 3" 1"
TiCN-Beschichtet
AlTiN-Beschichtet 51330 - - .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4"
51560 - - .6299 16.000 16.0 88 32
51350 - - .7500 3/4" 19.050 3/4" 4" 1-1/2"
51370 - - 1.000 1" 25.400 1" 4" 1-1/2"
51400 - - 1.250 1-1/4" 31.750 1-1/4" 4-1/2" 2"
Fresa de submicrograno sólido carburo de alto rendimiento - corte centrado 51430 - - 1.250 1-1/4" 31.750 1-1/4" 6" 3“
Mecanizado de alto rendimiento para aceros
La sujección firme del útil, la estabilidad de la máquina y la integridad - 51114 - .1875 3/16" 4.763 3/16" 2" 5/8"
de las piezas son cruciales - 51154 - .2500 1/4" 6.350 1/4" 2-1/2" 3/4"
Excelente durabilidad - 51194 - .3125 5/16" 7.938 5/16" 2-1/2" 7/8"
Recubrimiento de TiCN - 51234 - .3750 3/8" 9.525 3/8" 2-1/2" 7/8"
Recubrimiento de AlTiN - 51274 - .4375 7/16" 11.113 7/16" 2-3/4" 1"
- 51314 - .5000 1/2" 12.700 1/2" 3" 1" 35 6
- 51334 - .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4"
- 51354 - .7500 3/4" 19.050 3/4" 4" 1-1/2"
Fraises carbure submicrograin - coupe au centre - 51374 - 1.000 1" 25.400 1" 4" 1-1/2"
Haute performance pour la finition pour aciers - 51404 - 1.250 1-1/4" 31.750 1-1/4" 4-1/2" 2"
Le serrage et la stabilite de la piece, la rigidite de la machine et l’atatchment - 51434 - 1.250 1-1/4" 31.750 1-1/4" 6" 3“
de l’outil sont tres importantes
Excellente duree de vie - - 51117 .1875 3/16" 4.763 3/16" 2" 5/8"
Revêtement TiCN - - 51517 .1969 5.000 5.0 50 16
Revêtement AlTiN - - 51597 .1969 5.000 6.0 65 16
- - 51527 .2362 6.000 6.0 65 20
- - 51157 .2500 1/4" 6.350 1/4" 2-1/2" 3/4"
- - 51197 .3125 5/16" 7.938 5/16" 2-1/2" 7/8" MATERIAL HARDNESS (Rc)
- - 51537 .3150 8.000 8.0 65 22
Fresa sub-micrograno metallo duro - taglio al centro
Alte prestazioni per lavorazioni di utensile di finitura su acciaio - - 51237 .3750 3/8" 9.525 3/8" 2-1/2" 7/8"
Serraggio rigido, macchina stabile e ottimo bloccaggio del pezzo sono necessari! - - 51547 .3937 10.000 10.0 70 25
Eccellente durata di vita utensile - - 51277 .4375 7/16" 11.113 7/16" 2-3/4" 1"
Rivestimento in TiCN - - 51557 .4724 12.000 12.0 75 26
Rivestimento in AlTiN - - 51317 .5000 1/2" 12.700 1/2" 3" 1"
- - 51337 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4"
- - 51567 .6299 16.000 16.0 88 32
- - 51357 .7500 3/4" 19.050 3/4" 4" 1-1/2"
- - 51577 .7874 20.000 20.0 100 38
高效超细晶粒整体硬质合金立铣刀 - 中心切削 - - 51587 .9843 25.000 25.0 100 38
在钢件、高效精加工刀具 - - 51377 1.000 1" 25.400 1" 4" 1-1/2"
高刚性工件夹持、机床稳定性以及零件的牢固性是至关重要的因素！ - - 51407 1.250 1-1/4" 31.750 1-1/4" 4-1/2" 2"
耐用性极好 - - 51437 1.250 1-1/4" 31.750 1-1/4" 6" 3“ 0 6
TiCN 涂层
AlTiN 涂层

+1 989-463-6171 fax +1 989-463-3609 191
