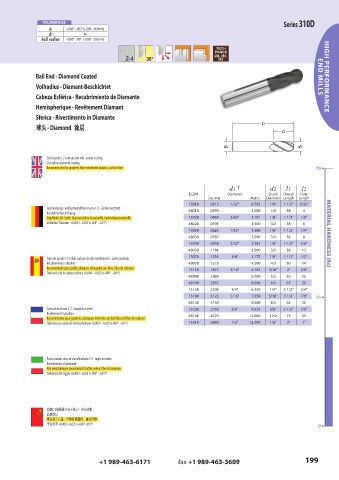

Page 199 - GARR_TOOL(CATALOG_INT)

TOLERANCES Series 310D
d1 +.000" –.002" (+.000 –.050mm)
d2 h6
ball radius +.000" –.001" (+.000 –.025mm)

288, 289,
315

Ball End - Diamond Coated END MILLS HIGH PERFORMANCE
Vollradius - Diamant-Beschichtet
Cabeza Esférica - Recubrimiento de Diamante
Hemispherique - Revêtement Diamant

Sferica - Rivestimento in Diamante
球头 - 涂层
球头 - Diamond 涂层

Solid grade C-2 carbide end mill - center cutting
Crystalline diamond coating
Recommended for graphite, fiber-reinforced plastics, carbon fiber 70 6

d1 † d2 l1 l2
EDP# Diameter Shank Overall Flute
Decimal Metric Diameter Length Length
15018 .0312 1/32" 0.792 1/8" 1-1/2" 3/32"
Hochleistungs- Vollhartmetallfräser Sorte C-2 - Zentrumsschnitt
Krystalline Beschichtung 48018 .0394 1.000 3.0 38 4
Empfohlen für Grafit, Faserverstärkte Kunststoffe, Carbonfaserwerkstoffe 15028 .0469 3/64" 1.191 1/8" 1-1/2" 1/8"
Vollradius Toleranz: +0,000 / –0,025 (+.000" –.001") 48028 .0591 1.500 3.0 38 6
15038 .0625 1/16" 1.588 1/8" 1-1/2" 1/4" MATERIAL HARDNESS (Rc)
48038 .0787 2.000 3.0 38 8
15058 .0938 3/32" 2.383 1/8" 1-1/2" 3/8"
48058 .1181 3.000 3.0 38 12
Fresa de grado C-2 sólido carburo de alto rendimiento - corte centrado 15078 .1250 1/8" 3.175 1/8" 1-1/2" 1/2"
Recubrimiento cristalino 48078 .1575 4.000 4.0 50 14
Recomendado para grafito, plásticos reforzados con fibra, fibra de carbono 15118 .1875 3/16" 4.763 3/16" 2" 5/8"
Tolerancia de la cabeza esférica +0,000 / –0,025 (+.000" –.001")
48098 .1969 5.000 5.0 50 16
48108 .2362 6.000 6.0 65 20
15158 .2500 1/4" 6.350 1/4" 2-1/2" 3/4"
15198 .3125 5/16" 7.938 5/16" 2-1/2" 7/8" 35 6
48128 .3150 8.000 8.0 65 20
Carbure de classe C-2 - coupe au centre 15238 .3750 3/8" 9.525 3/8" 2-1/2" 7/8"
Revêtement Crystalline 48168 .4724 12.000 12.0 75 25
Recommandee pour graphite, plastiques renforcés par des fibres et fibre de carbone
Tolerance du rayon de hemispherique +0,000 / –0,025 (+.000" –.001") 15318 .5000 1/2" 12.700 1/2" 3" 1"

Fresa metallo duro di classificazione C-2 - taglio al centro
Rivestimento al diamante
Alte prestazioni per lavorazioni di Grafite, resine, fibre di carbonio
Tolleranza del raggio +0,000 / –0,025 (+.000" –.001")

高效C-2级硬质合金立铣刀 - 中心切削
晶体涂层
推荐加工石墨、纤维补强塑料、碳素纤维
半径允差 +0,000 /–0,025 (+.000"–.001") 0 6
