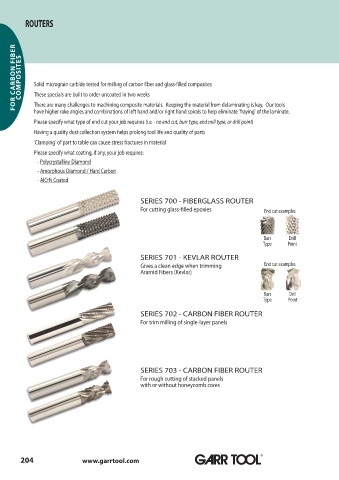

Page 204 - GARR_TOOL(CATALOG_INT)

ROUTERS

FOR CARBON FIBER COMPOSITES Solid micrograin carbide tested for milling of carbon fiber and glass-filled composites

These specials are built to order uncoated in two weeks
There are many challenges to machining composite materials. Keeping the material from delaminating is key. Our tools
have higher rake angles and combinations of left hand and/or right hand spirals to help eliminate 'fraying' of the laminate.
Please specify what type of end cut your job requires (i.e. - no end cut, burr type, end mill type, or drill point)
Having a quality dust collection system helps prolong tool life and quality of parts
'Clamping' of part to table can cause stress fractures in material

Please specify what coating, if any, your job requires:
- Polycrystalline Diamond
- Amorphous Diamond / Hard Carbon
- AlCrN Coated

SERIES 700 - FIBERGLASS ROUTER
For cutting glass-filled epoxies End cut examples

Burr Drill
Type Point
SERIES 701 - KEVLAR ROUTER
Gives a clean edge when trimming End cut examples
Aramid Fibers (Kevlar)

Burr Drill
Type Point

SERIES 702 - CARBON FIBER ROUTER
For trim milling of single-layer panels

SERIES 703 - CARBON FIBER ROUTER
For rough cutting of stacked panels
with or without honeycomb cores
