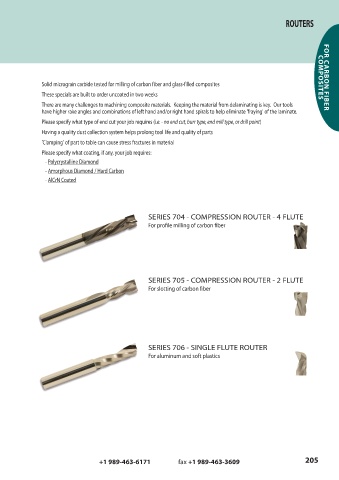

Page 205 - GARR_TOOL(CATALOG_INT)

ROUTERS

Solid micrograin carbide tested for milling of carbon fiber and glass-filled composites COMPOSITES FOR CARBON FIBER
These specials are built to order uncoated in two weeks
There are many challenges to machining composite materials. Keeping the material from delaminating is key. Our tools
have higher rake angles and combinations of left hand and/or right hand spirals to help eliminate 'fraying' of the laminate.
Please specify what type of end cut your job requires (i.e. - no end cut, burr type, end mill type, or drill point)
Having a quality dust collection system helps prolong tool life and quality of parts
'Clamping' of part to table can cause stress fractures in material

Please specify what coating, if any, your job requires:
- Polycrystalline Diamond
- Amorphous Diamond / Hard Carbon
- AlCrN Coated

SERIES 704 - COMPRESSION ROUTER - 4 FLUTE
For profile milling of carbon fiber

SERIES 705 - COMPRESSION ROUTER - 2 FLUTE
For slotting of carbon fiber

SERIES 706 - SINGLE FLUTE ROUTER
For aluminum and soft plastics

+1 989-463-6171 fax +1 989-463-3609 205
