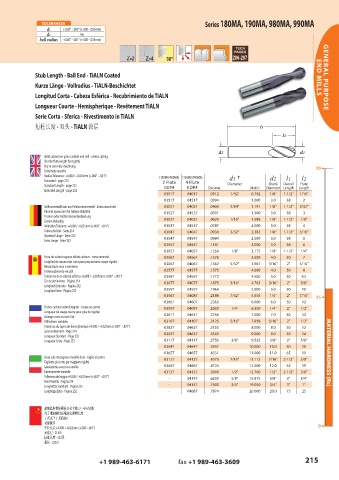

Page 215 - GARR_TOOL(CATALOG_INT)

Series 180MA, 190MA, 980MA, 990MA
TOLERANCES
d1 +.000" –.002" (+.000 –.050mm)
d2 h6
ball radius +.000" –.001" (+.000 –.025mm)

Z2 286-287
=

Stub Length - Ball End - TiALN Coated END MILLS GENERAL PURPOSE
Kurze Länge - Vollradius - TiALN-Beschichtet
Longitud Corta - Cabeza Esférica - Recubrimiento de TiALN
Longueur Courte - Hemispherique - Revêtement TiALN
Serie Corta - Sferica - Rivestimento in TiALN

短柱长度 双头 涂层
短柱长度 - 双头 - TiALN 涂层

Solid submicron grain carbide end mill - center cutting
Shorter flute length for rigidity
Dry or semi-dry machining 70 6
Extremely versatile
Radius Tolerance: +0.000 / –0.025mm (+.000" –.001") (180MA/980MA) (190MA/990MA) d1 † d2 l1 l2
Uncoated - page 214 2 Flute 4 Flute
Overall
Flute
Shank
Standard Length - page 232 EDP# EDP# Decimal Diameter Metric Diameter Length Length
Extended Length - page 252
03017 04017 .0312 1/32" 0.792 1/8" 1-1/2" 1/16"
03517 04517 .0394 1.000 3.0 38 2
Vollhartmetallfräser aus Feinkornhartmetall - Zentrumsschnitt 03027 04027 .0469 3/64" 1.191 1/8" 1-1/2" 3/32"
Kürzere Spannuten für höhere Stabilität 03527 04527 .0591 1.500 3.0 38 3
Trocken oder Halbtrockene Bearbeitung
Extrem Vielseitig 03037 04037 .0625 1/16" 1.588 1/8" 1-1/2" 1/8"
Vollradius Toleranz: +0,000 / –0,025mm (+.000" –.001") 03537 04537 .0787 2.000 3.0 38 4
Unbeschichtet - Seite 214 03047 04047 .0938 3/32" 2.383 1/8" 1-1/2" 3/16"
Standard Länge - Seite 232 03547 04547 .0984 2.500 3.0 38 5
Extra Länge - Seite 252
03557 04557 .1181 3.000 3.0 38 6
03057 04057 .1250 1/8" 3.175 1/8" 1-1/2" 1/4"
Fresa de submicrograno sólido carburo - corte centrado 03567 04567 .1378 3.500 4.0 50 7
Longitud de ranura más corta para proporcionar mayor rigidez 03067 04067 .1562 5/32" 3.967 3/16" 2" 5/16"
Mecanizado seco o semiseco
Extremadamente versátil 03577 04577 .1575 4.000 4.0 50 8
Tolerancia de la cabeza esférica +0,000 / –0,025mm (+.000" –.001") 03587 04587 .1772 4.500 5.0 50 9.5
Sin recubrimiento - Página 214 03077 04077 .1875 3/16" 4.763 3/16" 2" 3/8"
Longitud Estándar - Página 232
Longitud Extra - Página 252 03597 04597 .1969 5.000 5.0 50 10
03087 04087 .2188 7/32" 5.558 1/4" 2" 7/16" 35 6
03607 04607 .2362 6.000 6.0 50 12
Fraises carbure submicrograin - coupe au centre 03097 04097 .2500 1/4" 6.350 1/4" 2" 1/2"
Longueur de coupe courte pour plus de rigidite
Usinage a sec ou avec l’air 03617 04617 .2756 7.000 7.0 50 12
Utilisations variables 03107 04107 .3125 5/16" 7.938 5/16" 2" 1/2"
Tolerance du rayon de hemispherique +0,000 / –0,025mm (+.000" –.001") 03627 04627 .3150 8.000 8.0 50 12
Sans revêtement - Page 214
Longueur Standart - Page 232 03637 04637 .3543 9.000 9.0 50 14
Longueur Extra - Page 252 03117 04117 .3750 3/8" 9.525 3/8" 2" 5/8"
03647 04647 .3937 10.000 10.0 50 16
03657 04657 .4331 11.000 11.0 65 19 MATERIAL HARDNESS (Rc)
Fresa sub-micrograno metallo duro - taglio al centro 03127 04127 .4375 7/16" 11.113 7/16" 2-1/2" 5/8"
Tagliente più corto per maggiore rigidità
Lavorazione a secco o a umido 03667 04667 .4724 12.000 12.0 65 19
Estremamente varsatile 03137 04137 .5000 1/2" 12.700 1/2" 2-1/2" 5/8"
Tolleranza del raggio +0,000 / –0,025mm (+.000" –.001") - 04147 .6250 5/8" 15.875 5/8" 3" 3/4"
Non Rivestito - Pagina 214
Lunghezza Standard - Pagina 232 - 04157 .7500 3/4" 19.050 3/4" 3" 1"
Lunghezza Extra - Pagina 252 - 04687 .7874 20.000 20.0 75 25

超细晶粒整体硬质合金立铣刀 - 中心切削
为了增加刚性应缩短出屑槽长度
干式或半干式机加工
功能极多
半径允差 +0,000 /–0,025mm (+.000"–.001") 0 6
未涂层 - 214页
标准长度
标准长度 - 232页
超长 - 252页
超长 - 252
+1 989-463-6171 fax +1 989-463-3609 215
