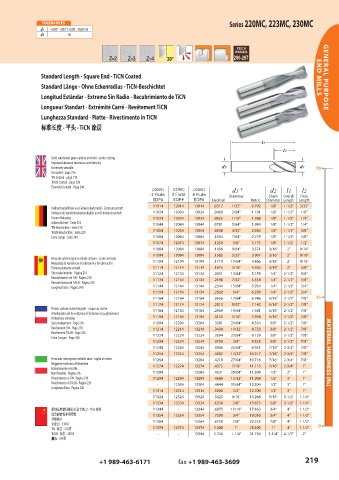

Page 219 - GARR_TOOL(CATALOG_INT)

Series 220MC, 223MC, 230MC
TOLERANCES
d1 +.000" –.002" (+.000 –.050mm)
d2 h6

Z2 286-287
=

Standard Length - Square End - TiCN Coated END MILLS GENERAL PURPOSE
Standard Länge - Ohne Eckenradius - TiCN-Beschichtet
Longitud Estándar - Extremo Sin Radio - Recubrimiento de TiCN
Longueur Standart - Extrémité Carré - Revêtement TiCN

Lunghezza Standard - Piatte - Rivestimento in TiCN
涂层
平头
标准长度
标准长度 - 平头 - TiCN 涂层

Solid submicron grain carbide end mill - center cutting
Improved abrasion resistance and lubricity
Extremely versatile 70 6
Uncoated - page 216
TiN Coated - page 218
TiALN Coated - page 220
Extended Length - Page 240
(220MC) (223MC) (230MC) d1 † d2 l1 l2
2 Flute 3 Flute 4 Flute Diameter Shank Overall Flute
EDP# EDP# EDP# Decimal Metric Diameter Length Length
11014 12014 13014 .0312 1/32" 0.792 1/8" 1-1/2" 3/32"
Vollhartmetallfräser aus Feinkornhartmetall - Zentrumsschnitt
Verbesserte Verschleissbeständigkeit und Schmiereienschaft 11024 12024 13024 .0469 3/64" 1.191 1/8" 1-1/2" 1/8"
Extrem Vielseitig 11034 12034 13034 .0625 1/16" 1.588 1/8" 1-1/2" 1/4"
Unbeschichtet - Seite 216 11044 12044 13044 .0781 5/64" 1.984 1/8" 1-1/2" 1/4"
TiN-Beschichtet - Seite 218
TiALN-Beschichtet - Seite 220 11054 12054 13054 .0938 3/32" 2.383 1/8" 1-1/2" 3/8"
Extra Länge - Seite 240 11064 12064 13064 .1094 7/64" 2.779 1/8" 1-1/2" 3/8"
11074 12074 13074 .1250 1/8" 3.175 1/8" 1-1/2" 1/2"
11084 12084 13084 .1406 9/64" 3.571 3/16" 2" 9/16"
11094 12094 13094 .1562 5/32" 3.967 3/16" 2" 9/16"
Fresa de submicrograno sólido carburo - corte centrado
Mejoradas la resistencia a la abrasión y la lubricación 11104 12104 13104 .1719 11/64" 4.366 3/16" 2" 9/16"
Extremadamente versátil 11114 12114 13114 .1875 3/16" 4.763 3/16" 2" 5/8"
Sin recubrimiento - Página 216 11124 12124 13124 .2031 13/64" 5.159 1/4" 2-1/2" 5/8"
Recubrimiento de TiN - Página 218 11134 12134 13134 .2188 7/32" 5.558 1/4" 2-1/2" 5/8"
Recubrimiento de TiALN - Página 220
Longitud Extra - Página 240 11144 12144 13144 .2344 15/64" 5.954 1/4" 2-1/2" 3/4"
11154 12154 13154 .2500 1/4" 6.350 1/4" 2-1/2" 3/4"
11164 12164 13164 .2656 17/64" 6.746 5/16" 2-1/2" 7/8" 35 6
11174 12174 13174 .2812 9/32" 7.142 5/16" 2-1/2" 7/8"
Fraises carbure submicrograin - coupe au centre 11184 12184 13184 .2969 19/64" 7.541 5/16" 2-1/2" 7/8"
Amelioration de la resistance a l’abrasion et au glissement
Utilisations variables 11194 12194 13194 .3125 5/16" 7.938 5/16" 2-1/2" 7/8"
Sans revêtement - Page 216 11204 12204 13204 .3281 21/64" 8.334 3/8" 2-1/2" 7/8"
Revêtement TiN - Page 218 11214 12214 13214 .3438 11/32" 8.733 3/8" 2-1/2" 7/8"
Revêtement TiALN - Page 220 11224 12224 13224 .3594 23/64" 9.129 3/8" 2-1/2" 7/8"
Extra Longue - Page 240
11234 12234 13234 .3750 3/8" 9.525 3/8" 2-1/2" 7/8"
11244 12244 13244 .3906 25/64" 9.921 7/16" 2-3/4" 7/8"
11254 12254 13254 .4062 13/32" 10.317 7/16" 2-3/4" 7/8" MATERIAL HARDNESS (Rc)
Fresa sub-micrograno metallo duro - taglio al centro 11264 - 13264 .4219 27/64" 10.716 7/16" 2-3/4" 7/8"
Maggiore resistenza all’abrasione 11274 12274 13274 .4375 7/16" 11.113 7/16" 2-3/4" 1"
Estremamente varsatile
Non Rivestito - Pagina 216 11284 - 13284 .4531 29/64" 11.509 1/2" 3" 1"
Rivestimento in TiN - Pagina 218 11294 12294 13294 .4688 15/32" 11.908 1/2" 3" 1"
Rivestimento in TiALN - Pagina 220 - 12304 13304 .4844 31/64" 12.304 1/2" 3" 1"
Lunghezza Extra - Pagina 240
11314 12314 13314 .5000 1/2" 12.700 1/2" 3" 1"
11324 12324 13324 .5625 9/16" 14.288 9/16" 3-1/2" 1-1/4"
11334 12334 13334 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4"
超细晶粒整体硬质合金立铣刀 - 中心切削 11344 - 13344 .6875 11/16" 17.463 3/4" 4" 1-1/2"
改善耐磨性和润滑性 11354 12354 13354 .7500 3/4" 19.050 3/4" 4" 1-1/2"
功能极多 11364 - 13364 .8750 7/8" 22.225 7/8" 4" 1-1/2"
未涂层 - 216页 0 6
TiN 涂层 - 218页 11374 12374 13374 1.000 1" 25.400 1" 4" 1-1/2"
TiALN 涂层 - 220页 - - 13394 1.250 1-1/4" 31.750 1-1/4" 4-1/2" 2"
超长
超长 - 240页

+1 989-463-6171 fax +1 989-463-3609 219
