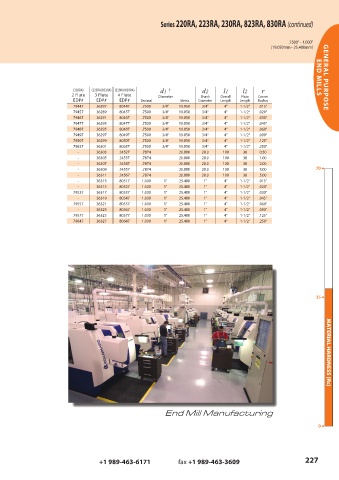

Page 227 - GARR_TOOL(CATALOG_INT)

Series 220RA, 223RA, 230RA, 823RA, 830RA (continued)

.7500" - 1.000"
(19.050mm - 25.400mm)

(220RA) (223RA/823RA) (230RA/830RA) d1 † d2 l1 l2 r END MILLS GENERAL PURPOSE
2 Flute 3 Flute 4 Flute Diameter Shank Overall Flute Corner
EDP# EDP# EDP# Decimal Metric Diameter Length Length Radius
79447 36287 80447 .7500 3/4" 19.050 3/4" 4" 1-1/2" .015"
79457 36289 80457 .7500 3/4" 19.050 3/4" 4" 1-1/2" .020"
79467 36291 80467 .7500 3/4" 19.050 3/4" 4" 1-1/2" .030"
79477 36293 80477 .7500 3/4" 19.050 3/4" 4" 1-1/2" .045"
79487 36295 80487 .7500 3/4" 19.050 3/4" 4" 1-1/2" .060"
79497 36297 80497 .7500 3/4" 19.050 3/4" 4" 1-1/2" .090"
79507 36299 80507 .7500 3/4" 19.050 3/4" 4" 1-1/2" .125"
79637 36301 80637 .7500 3/4" 19.050 3/4" 4" 1-1/2" .250"
- 36303 24527 .7874 20.000 20.0 100 38 0.50
- 36305 24537 .7874 20.000 20.0 100 38 1.00
- 36307 24547 .7874 20.000 20.0 100 38 2.00
- 36309 24557 .7874 20.000 20.0 100 38 3.00 70 6
- 36311 24567 .7874 20.000 20.0 100 38 5.00
- 36313 80517 1.000 1" 25.400 1" 4" 1-1/2" .015"
- 36315 80527 1.000 1" 25.400 1" 4" 1-1/2" .020"
79537 36317 80537 1.000 1" 25.400 1" 4" 1-1/2" .030"
- 36319 80547 1.000 1" 25.400 1" 4" 1-1/2" .045"
79557 36321 80557 1.000 1" 25.400 1" 4" 1-1/2" .060"
- 36323 80567 1.000 1" 25.400 1" 4" 1-1/2" .090"
79577 36325 80577 1.000 1" 25.400 1" 4" 1-1/2" .125"
79647 36327 80647 1.000 1" 25.400 1" 4" 1-1/2" .250"

35 6 MATERIAL HARDNESS (Rc)

End Mill Manufacturing

0 6
