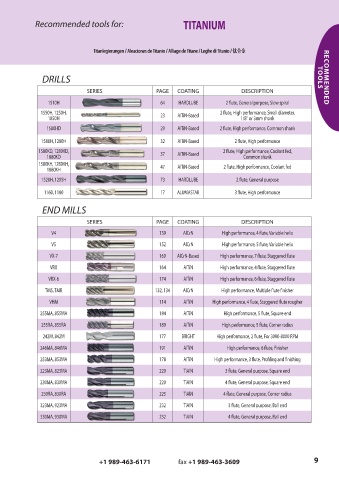

Recommended tools for:                              TITANIUM




                                               leaciones de
                                                       T
                                                       itanio / A
                                  T Titanlegierungen / Aleaciones de Titanio / Alliage de Titane / Leghe di Titanio / 钛合金
                                   itanleg
                                       ierungen / A
                                                             lliage de
                                                                             T
                                                                              itanio /
                                                                        eghe di
                                                                   T
                                                                   itane / L
                                                                                   钛合金
                DRILLS                                                                                           TOOLS  RECOMMENDED
                                SERIES                  PAGE   COATING                DESCRIPTION
                  1510H                                  64     HARDLUBE        2 flute, General purpose, Slow spiral
               1550H, 1250H,                             23    AlTiN-Based    2 flute, High performance, Small diameter,
                  1850H                                                               1/8" or 3mm shank
                 1580HD                                  29    AlTiN-Based    2 flute, High performance, Common shank
                1580H, 1280H                             32    AlTiN-Based         2 flute, High performance
               1580KD, 1280KD,                           37    AlTiN-Based     2 flute, High performance, Coolant fed,
                 1880KD                                                                Common shank
               1580KH, 1280KH,                           47    AlTiN-Based      2 flute, High performance, Coolant fed
                 1880KH

                1520H, 1205H                             73     HARDLUBE            2 flute, General purpose
                 1160, 1180                              17    ALUMASTAR           3 flute, High performance


                END MILLS

                                SERIES                  PAGE   COATING                DESCRIPTION
                   V4                                    139     AlCrN         High performance, 4 flute, Variable helix

                   V5                                    152     AlCrN         High performance, 5 flute, Variable helix
                  VX-7                                   160   AlCrN-Based    High performance, 7 flute, Staggered flute

                   VRX                                   164     AlTiN        High performance, 4 flute, Staggered flute
                  VRX-6                                  174     AlTiN        High performance, 6 flute, Staggered flute

                 TMS, TMR                               132, 134  AlCrN        High performance, Multiple flute finisher
                  VHM                                    114     AlTiN      High performance, 4 flute, Staggered flute rougher

               255MA, 855MA                              184     AlTiN          High performance, 5 flute, Square end
                255RA, 855RA                             189     AlTiN         High performance, 5 flute, Corner radius

                242M, 842M                               177     BRIGHT      High performance, 2 flute, For 3000-8000 RPM

               246MA, 846MA                              191     AlTiN           High performance, 6 flute, Finisher
               253MA, 853MA                              178     AlTiN      High performance, 3 flute, Profiling and finishing
               223MA, 823MA                              220     TiAlN          3 flute, General purpose, Square end

               230MA, 830MA                              220     TiAlN          4 flute, General purpose, Square end

                230RA, 830RA                             225     TiAlN         4 flute, General purpose, Corner radius
               323MA, 923MA                              232     TiAlN           3 flute, General purpose, Ball end
               330MA, 930MA                              232     TiAlN           4 flute, General purpose, Ball end
