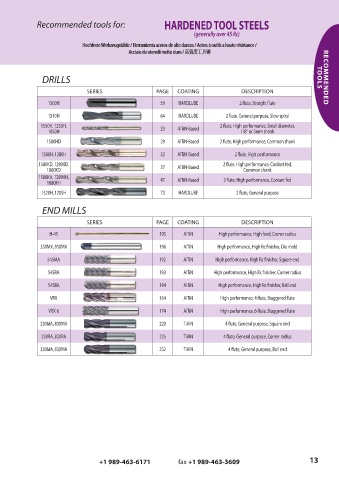

P. 13

Recommended tools for:                       HARDENED TOOL STEELS
                                                                     (generally over 45 Rc)

                              Hochfeste Werkzeugstähle / Herramienta aceros de alto dureza / Aciers à outils a haute résistance /
                                                      ta ac
                                                          os de alt
                                                         er
                                                  amien
                                      er
                                       kz
                                        eugstähle / Her
                                                  r
                              Hochf
                                                                                   e r
                                                                       ciers à outils a haut
                                                                                          e /
                                                                                     ésistanc
                                                                   eza / A
                                                                o dur
                                     W
                                  est
                                    e
                                                      ensili molt
                                                             o dur
                                                                o /
                                              A Acciaio da utensili molto duro / 高强度工具钢
                                               c
                                                ciaio da ut
                                                                  高强度工具钢
                DRILLS                                                                                           TOOLS  RECOMMENDED
                                SERIES                  PAGE   COATING                DESCRIPTION
                  1500H                                  59     HARDLUBE             2 flute, Straight flute
                  1510H                                  64     HARDLUBE        2 flute, General purpose, Slow spiral
               1550H, 1250H,                             23    AlTiN-Based    2 flute, High performance, Small diameter,
                  1850H                                                               1/8" or 3mm shank
                 1580HD                                  29    AlTiN-Based    2 flute, High performance, Common shank
                1580H, 1280H                             32    AlTiN-Based         2 flute, High performance
               1580KD, 1280KD,                           37    AlTiN-Based     2 flute, High performance, Coolant fed,
                 1880KD                                                                Common shank
               1580KH, 1280KH,                           47    AlTiN-Based      2 flute, High performance, Coolant fed
                 1880KH
                1520H, 1205H                             73     HARDLUBE            2 flute, General purpose
                END MILLS
                                SERIES                  PAGE   COATING                DESCRIPTION
                  H-45                                   195     AlTiN        High performance, High feed, Corner radius

               350MX, 950MX                              196     AlTiN       High performance, High Rc finisher, Die mold

                  545MA                                  192     AlTiN       High performance, High Rc finisher, Square end

                  545RA                                  193     AlTiN      High performance, High Rc finisher, Corner radius

                  545BA                                  194     AlTiN        High performance, High Rc finisher, Ball end
                   VRX                                   164     AlTiN        High performance, 4 flute, Staggered flute

                  VRX-6                                  174     AlTiN        High performance, 6 flute, Staggered flute

               230MA, 830MA                              220     TiAlN          4 flute, General purpose, Square end

                230RA, 830RA                             225     TiAlN         4 flute, General purpose, Corner radius

               330MA, 930MA                              232     TiAlN           4 flute, General purpose, Ball end






















                                    +1 989-463-6171                    fax +1 989-463-3609                    13
