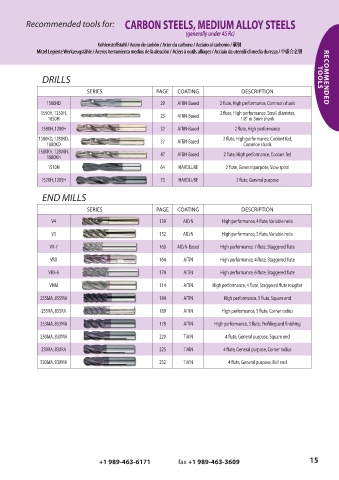

Recommended tools for:             CARBON STEELS, MEDIUM ALLOY STEELS
                                                                  (generally under 45 Rc)

                                   Kohlenst off stahl / A c er o de car bón / A cier du car bone / A c ciaio al car bonio /  碳钢
                                   Kohlenstoffstahl / Acero de carbón / Acier du carbone / Acciaio al carbonio / 碳钢
              M itt el L eg ier t e  W er kz eugstähle / A c er os her r amien ta medios de la aleación / A ciers à outils alliages / A c ciaio da ut ensili di media dur ezza /  中碳合金钢
              Mittel Legierte Werkzeugstähle / Aceros herramienta medios de la aleación / Aciers à outils alliages / Acciaio da utensili di media durezza / 中碳合金钢


                DRILLS                                                                                           TOOLS  RECOMMENDED

                                SERIES                  PAGE   COATING                DESCRIPTION

                 1580HD                                  29    AlTiN-Based    2 flute, High performance, Common shank
               1550H, 1250H,                             23    AlTiN-Based    2 flute, High performance, Small diameter,
                  1850H                                                               1/8" or 3mm shank
                1580H, 1280H                             32    AlTiN-Based         2 flute, High performance

               1580KD, 1280KD,                           37    AlTiN-Based     2 flute, High performance, Coolant fed,
                 1880KD                                                                Common shank
               1580KH, 1280KH,                           47    AlTiN-Based      2 flute, High performance, Coolant fed
                 1880KH
                  1510H                                  64     HARDLUBE        2 flute, General purpose, Slow spiral

                1520H, 1205H                             73     HARDLUBE            2 flute, General purpose

                END MILLS

                                SERIES                  PAGE   COATING                DESCRIPTION

                   V4                                    139     AlCrN         High performance, 4 flute, Variable helix
                   V5                                    152     AlCrN         High performance, 5 flute, Variable helix

                  VX-7                                   160   AlCrN-Based    High performance, 7 flute, Staggered flute

                   VRX                                   164     AlTiN        High performance, 4 flute, Staggered flute

                  VRX-6                                  174     AlTiN        High performance, 6 flute, Staggered flute

                  VHM                                    114     AlTiN      High performance, 4 flute, Staggered flute rougher
               255MA, 855MA                              184     AlTiN          High performance, 5 flute, Square end

                255RA, 855RA                             189     AlTiN         High performance, 5 flute, Corner radius

               253MA, 853MA                              178     AlTiN      High performance, 3 flute, Profiling and finishing

               230MA, 830MA                              220     TiAlN          4 flute, General purpose, Square end

                230RA, 830RA                             225     TiAlN         4 flute, General purpose, Corner radius

               330MA, 930MA                              232     TiAlN           4 flute, General purpose, Ball end



















                                    +1 989-463-6171                    fax +1 989-463-3609                    15
