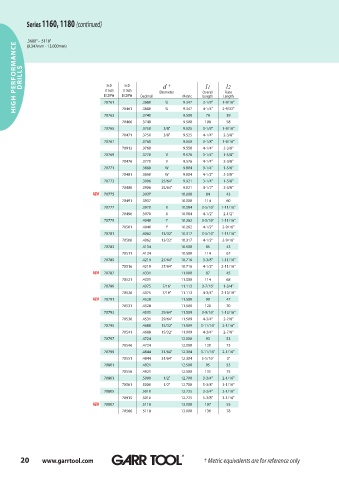

Page 20 - GARR_TOOL(CATALOG_INT)

Series 1160, 1180 (continued)

.3680" - .5118"
HIGH PERFORMANCE DRILLS EDP# EDP# Decimal Diameter Metric Overall Length
(9.347mm - 13.000mm)

d
†
3xD
5xD
l2
l1
(1180)
(1160)
Flute
Length
70761
9.347
.3680
2-9/32"
4-1/4"
70763 70461 .3680 U U 9.347 3-1/8" 1-9/16"
79
39
9.500
.3740
70466 .3740 9.500 108 58
70765 .3750 3/8" 9.525 3-1/8" 1-9/16"
70471 .3750 3/8" 9.525 4-1/4" 2-3/8"
70767 .3760 9.550 3-1/8" 1-9/16"
70913 .3760 9.550 4-1/4" 2-3/8"
70769 .3770 V 9.576 3-1/4" 1-5/8"
70476 .3770 V 9.576 4-1/4" 2-3/8"
70771 .3860 W 9.804 3-1/4" 1-5/8"
70481 .3860 W 9.804 4-1/2" 2-3/8"
70773 .3906 25/64" 9.921 3-1/4" 1-5/8"
70486 .3906 25/64" 9.921 4-1/2" 2-3/8"
NEW 70775 .3937 10.000 84 43
70491 .3937 10.000 114 60
70777 .3970 X 10.084 3-5/16" 1-11/16"
70496 .3970 X 10.084 4-1/2" 2-1/2"
70779 .4040 Y 10.262 3-5/16" 1-11/16"
70501 .4040 Y 10.262 4-1/2" 2-9/16"
70781 .4062 13/32" 10.317 3-5/16" 1-11/16"
70506 .4062 13/32" 10.317 4-1/2" 2-9/16"
70783 .4134 10.500 85 43
70511 .4134 10.500 114 67
70785 .4219 27/64" 10.716 3-3/8" 1-11/16"
70516 .4219 27/64" 10.716 4-1/2" 2-11/16"
NEW 70787 .4331 11.000 87 45
70521 .4331 11.000 114 68
70789 .4375 7/16" 11.113 3-7/16" 1-3/4"
70526 .4375 7/16" 11.113 4-3/4" 2-13/16"
NEW 70791 .4528 11.500 90 47
70531 .4528 11.500 120 70
70793 .4531 29/64" 11.509 3-9/16" 1-13/16"
70536 .4531 29/64" 11.509 4-3/4" 2-7/8"
70795 .4688 15/32" 11.909 3-11/16" 2-1/16"
70541 .4688 15/32" 11.909 4-3/4" 2-7/8"
70797 .4724 12.000 93 53
70546 .4724 12.000 120 73
70799 .4844 31/64" 12.304 3-11/16" 2-1/16"
70551 .4844 31/64" 12.304 5-5/16" 3"
70801 .4921 12.500 95 53
70556 .4921 12.500 135 75
70803 .5000 1/2" 12.700 3-3/4" 2-1/16"
70561 .5000 1/2" 12.700 5-3/8" 3-1/16"
70805 .5010 12.725 3-3/4" 2-1/16"
70915 .5010 12.725 5-3/8" 3-1/16"
NEW 70807 .5118 13.000 107 55
70566 .5118 13.000 136 78

20 www.garrtool.com ® ® ® † Metric equivalents are for reference only
